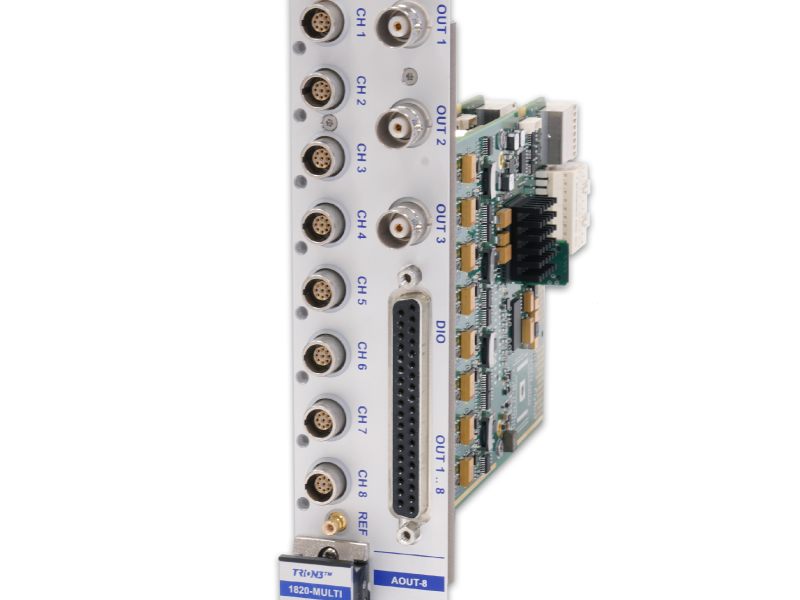

TRION3-AOUT8 Analogue Output Module
Our TRION3-AOUT8 analogue output module has 8 high speed and high resolution analogue output channels. Each channel can output ±5V or ±10V voltage and ±30 mA current signals, with ±30 mA max load current, at up to 2.5 MS/s or 32 bit resolution per channel. Modes include constant output, function generator waveform, stream generator output, math output and monitor output.
The function generator waveforms include sine, square, triangle and custom for maximum flexibility. Custom waveforms can be imported from CSV files for ease of use.
The math output and monitor output both work with the TRION-MULTI 8 channel data acquisition module. It has inputs for voltage (±100V), bridge (full / half / quarter), IEPE, current (±30 mA), potentiometers, as well as 1 CAN interface and 2 counter / encoder inputs, sampled at up to 5 MS/s per channel, with up to 24 bit resolution.
You can check out our range of analogue modules here.
For more information contact us using our form or give us a call on 01908 305960.
Applications include:
