Power Analyzer Input Modules

Power modules for 4 high voltage inputs and 4 current inputs. Sampling rate options of 2 MS/sec/channel up to a market leading 10 MS/sec/channel for the TRION3-1810M-POWER module. High accuracy over wideband frequency range and excellent electrical safety rating. Each current input can be populated with 4 different current measurement modules or with low voltage modules to connect any type of current transducer. There are two module series: The highspeed TRION3 modules are only compatible with the DEWE3 chassis, whilst TRION modules can be used in both, DEWE3 and DEWE2 chassis.

Please wait, loading results...

Power Analyzer Input Modules

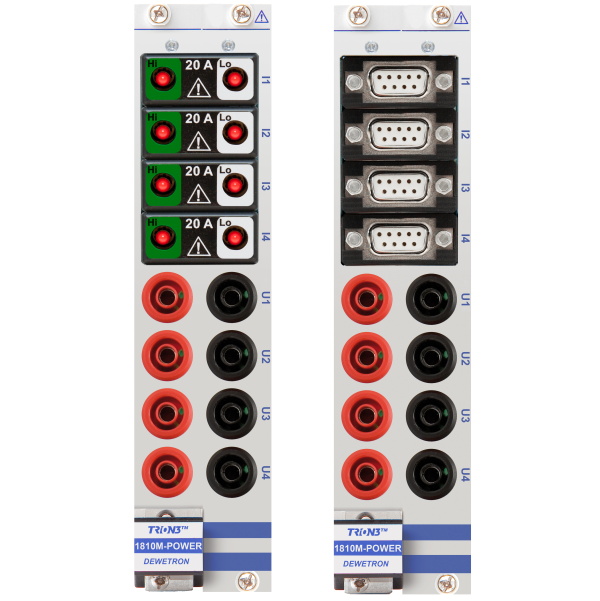

TRION3-1810M-POWER-4

Power Module TRION3-1810M-POWER-4

Power module for 4-phase power analysis

4 power channels
Sample rate up to 10 MS/s/channel
Accuracy +/- 0.02% of reading
Safety CAT IV 600V / CAT III 1000V

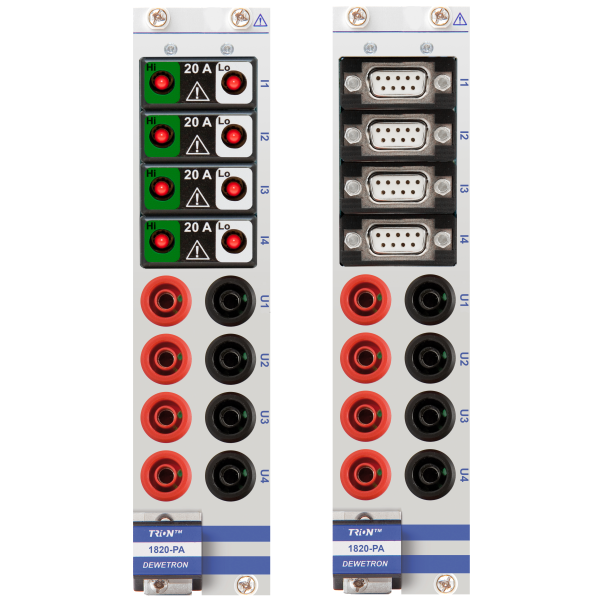

TRION-1820-POWER-4

Power Module TRION-1820-POWER-4

Power module for 4-phase Power Analysis

4 Power Channels
Sample rate up to 2 MS/s/channel
Accuracy +/- 0.03% of reading
Safety CAT IV 600V / CAT III 1000V

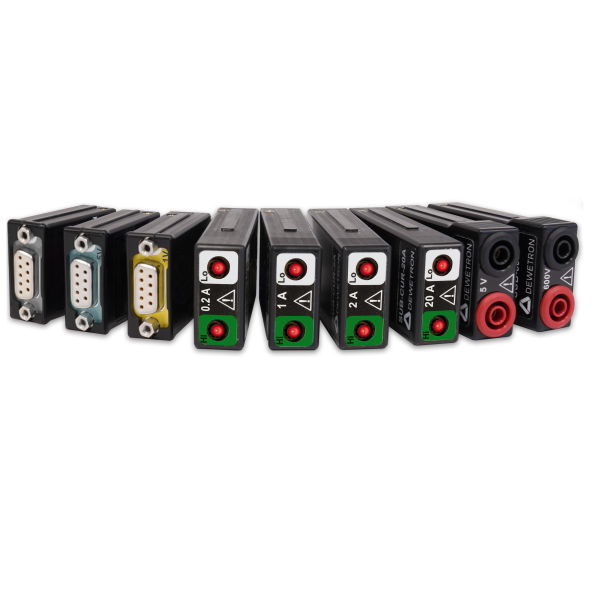

TRION-SUB-modules

TRION POWER SUB-MODULES

TRION sub-modules for use with TRION-POWER and TRION-HV modules

Voltage and current inputs
Up to 600V RMS (+/-1500V peak)
Up to 20A RMS (+/-40A peak)
Isolated, high bandwidth

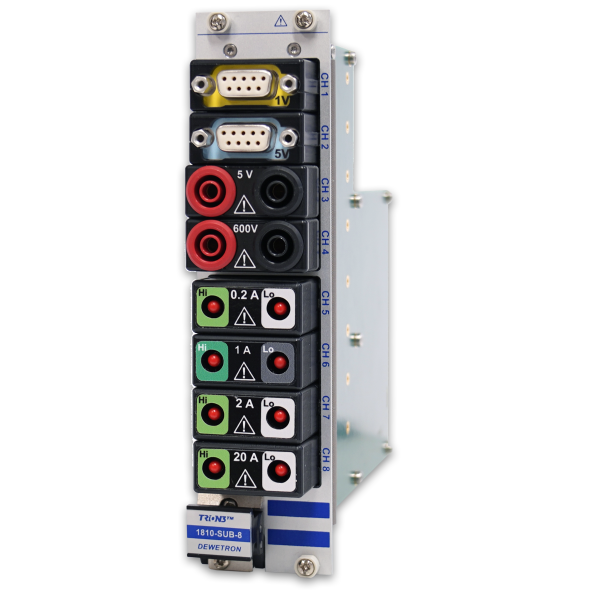

TRION3-1810-SUB-8

BASE MODULE FOR SUB MODULES TRION3-1810-SUB-8

TRION base module for sub modules

Up to 8 channels
Modular voltage and current inputs
Up to 600V rms (+/-1500V peak)
Up to 10 MS/s per channel sampling
