Amplifier Load Cell & Strain Gauge

Most of the load call amplifier units provide power to the sensor in addition to converting the sensor output. The 140/142 are high frequency, gain adjustable and can be matched to the sensor. The XAM is used for strain gauged based sensors to convert from a low mV output to either a voltage or current output. Cable assemblies are available to interface between the sensor and amplifier. Get in touch for and new products you are unsure about or if we can provide some extra information on the applications of our load cell amplifier devices.

Please wait, loading results...

Amplifier Load Cell & Strain Gauge

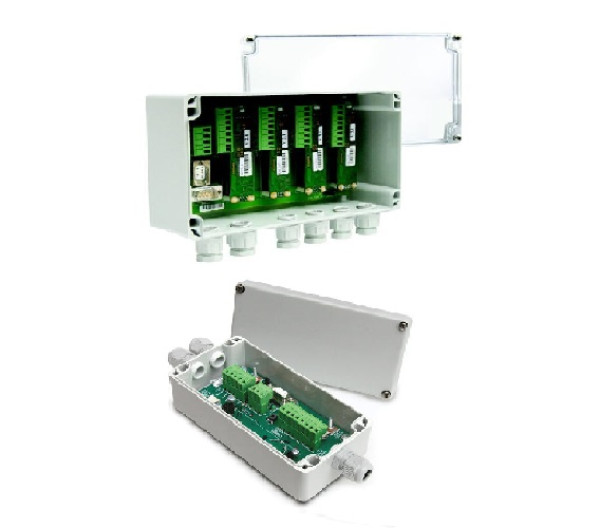

DSC

DSC digitiser module

Digitiser module for strain or load

Signal conversion
Linearisation and compensation
RS232, RS485, Modbus, CAN formats
Evaluation kit available

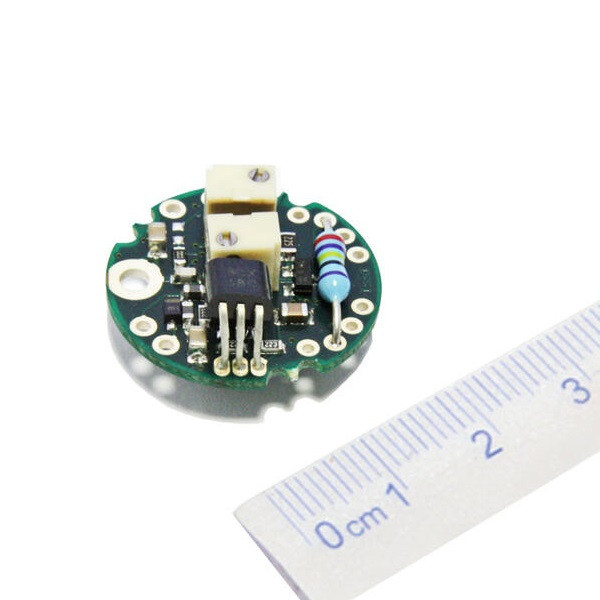

ICA-1

ICA analogue amplifier

Analogue amplifier for strain, pressure

Voltage supply standard 5 VDC
Output voltage or current options
Reverse polarity, short circuit protect
ATEX version available

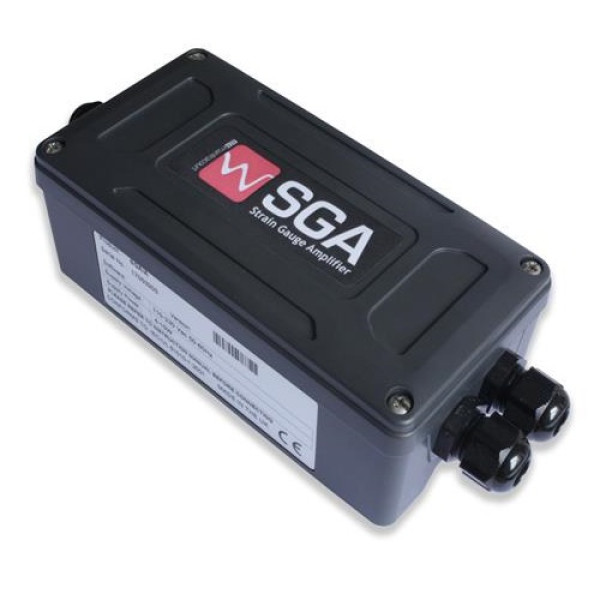

SGA

SGA strain gauge

Amplifier, strain and load

Supply either AC or DC options
Output current or voltage
Up to 4 x 350 ohm bridges
1-5 kHz filter available

AMP320

AMP320 DIN Rail

Amplifier, DIN rail mount

Supply 14-26 VDC
Output ±10 VDC
Bandwidth 1 to 10 kHz
Operating temperature 0 to +70°C

AMP330

AMP330 In Line Amplifier

In line amplifier

Supply 14-26 VDC
Output 0-10V and 4-20mA
Frequency 1 to 10 kHz
Connector Binder M8 male 768-718 Series
