As you can imagine with a large proportion of engineering activities, choosing the incorrect tool may have serious implications on the results of your measurements. The information contained below is to help visitors make a more informed decision on the Data Acquisition software which is most appropriate for their requirements.
Data acquisition software is used in conjunction with a data acquisition system. It is used for the functions listed below in the measurement process, all available within Oxygen:
To configure an input channel, you need to enter input type, range, sensor sensitivity, offset, excitation, and filtering. These are all entered in Oxygen and can be stored in a setup for reuse.
Oxygen supports TEDS (Transducer Electronic Data Sheet) for TRION-MULTI and TRION-2402-dACC. This enables automatic sensor calibration for devices such as accelerometers, pressure sensors, and load cells.
Oxygen also has a sensor database storing serial number, sensitivity, offset, and excitation, which can be allocated to acquisition channels.
DAQ software is installed on the acquisition system connected to sensors. Oxygen comes pre-installed on DEWE2/3 systems.
It can also be installed on PCs for post-processing, analysis, and reporting. For TRIONet front ends, Oxygen runs on the PC connected via Ethernet or USB.

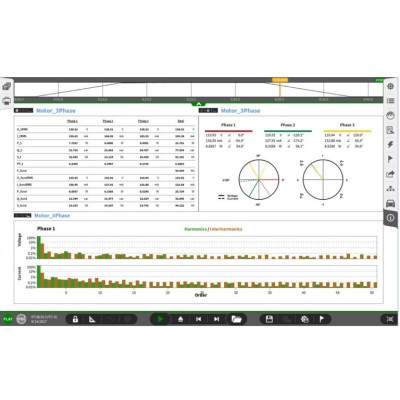

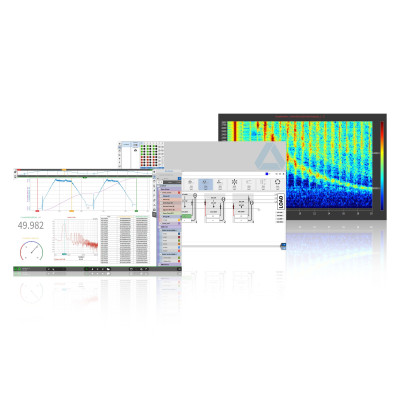

Oxygen allows real-time display of raw and calculated data (math, statistics, FFT, power groups, strain rosettes, etc.).

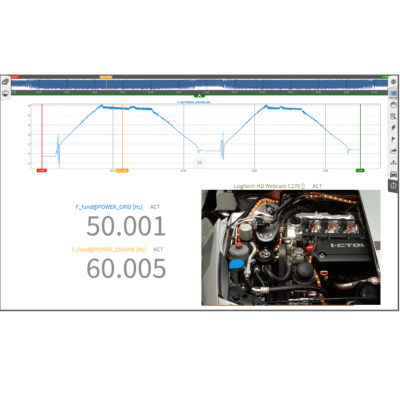

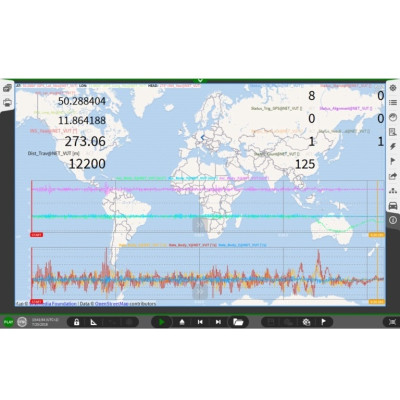

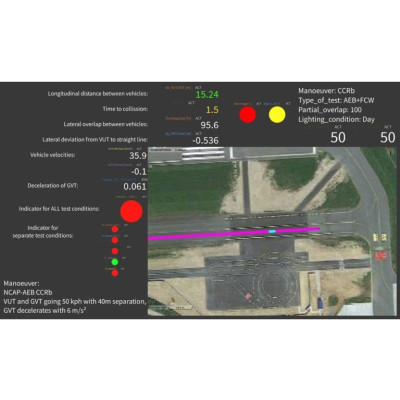

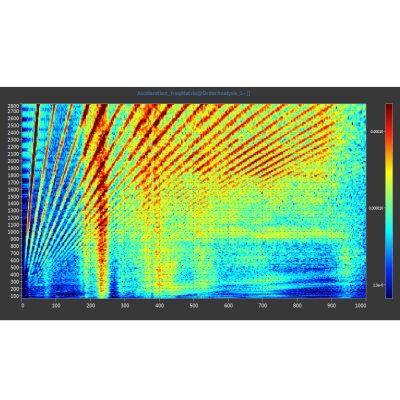

Available instruments: analogue/digital meters, charts, scopes, bar graphs, spectrum analysers, XY plots, GPS maps, spectrograms, efficiency maps, power instruments, video feeds, and more.
Multiple screens and multi-monitor setups are supported, ideal for control rooms.
Yes. Oxygen includes a reporting tool with configurable templates, multiple pages, and integration of all visual instruments. Reports can be exported directly to PDF or printed.

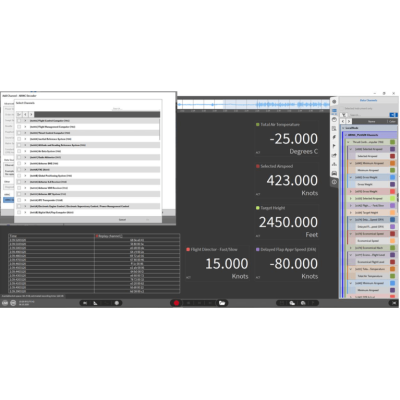

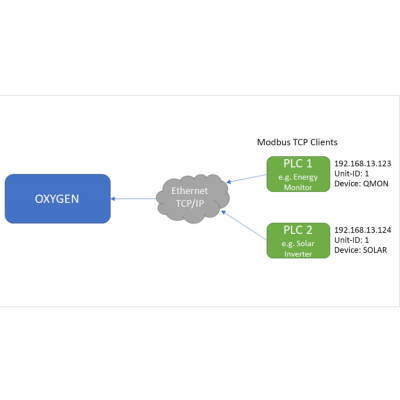

Oxygen supports many digital interfaces for receiving/transmitting signals:
Receive & Transmit
Receive
Transmit
Oxygen can be integrated into larger test cell environments, including drivetrains, dynos, and load control systems.

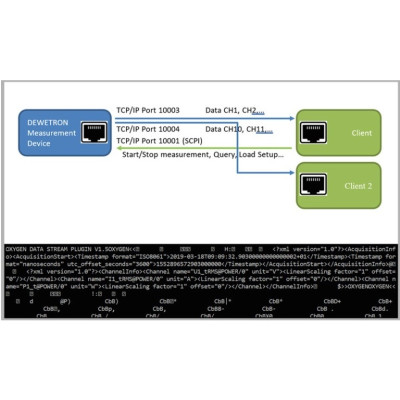

It supports SCPI over Ethernet for remote control, enabling setup loading, file naming, and automated acquisition control.
Oxygen ensures high-accuracy time stamping with TRION-SYNC-BUS. Synchronisation options include:
Yes. Data can be exported in multiple formats, including CSV, TXT, DMD, Excel, Matlab, MDF4, Diadem, Dynaworks, RPC III, and WAV. Export can cover full or trimmed durations and selected channels, with automatic export at measurement end.
