Quartz Servo Accelerometers

Enclosed is the standard range of Servo Accelerometers, custom designs are available upon request. If you are using the Honeywell Qflex range, we are able provide drop in replacements with the same, if not better, performance. These include the QA-700, QA-1400, QA-2000 (010, 020, 030 versions). Deliveries in general are 4 weeks. Recently introduced are the range of sub +/-15g low measurement ranges which are free from ITAR and Export Controls whilst maintaining their high accuracy and performance.

Please wait, loading results...

Quartz Servo Accelerometers

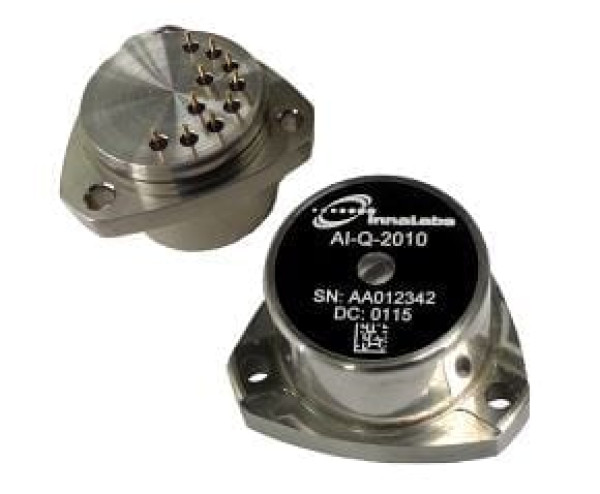

AI-Q-2010/2110 Servo Accelerometer

Servo accelerometer

Range +/- 60g (15g)
1 yr bias stability <550 µg
1 yr scale factor stability <600 ppm
Equivalent or better than QA2000-010

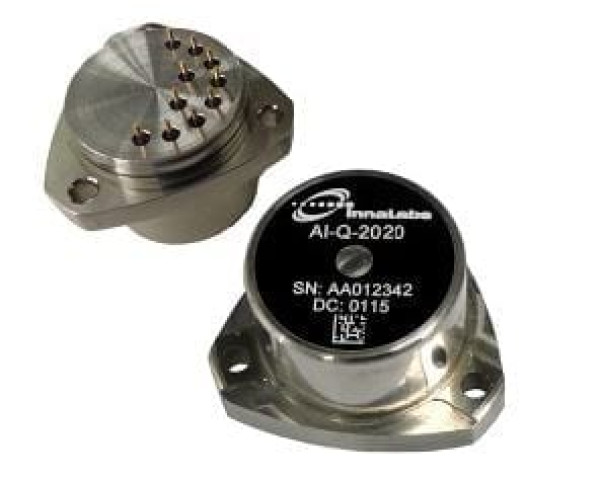

AI-Q-2020/2120 Servo Accelerometer

Servo accelerometer

Range +/-60g (15g)
1 yr bias stability <220 µg
1 yr scale factor stability <500 ppm
Equivalent or better than QA2000-020

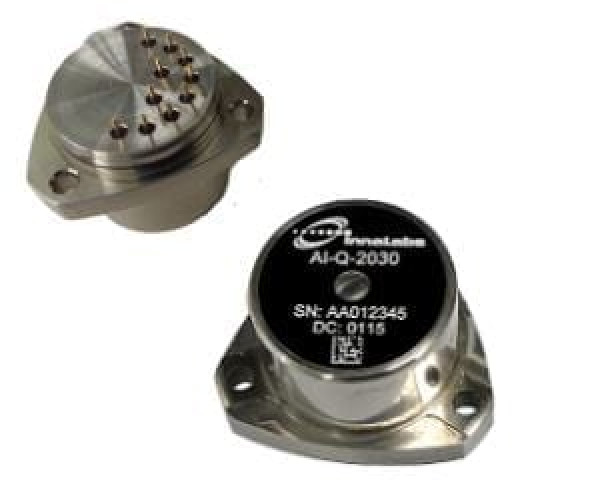

AI-Q-2030/2130 Servo Accelerometer

Servo accelerometer

Range +/-60g (15g)
1 yr bias stability <160 µg
1 yr scale factor stability <310 ppm
Equivalent or better than QA2000-030

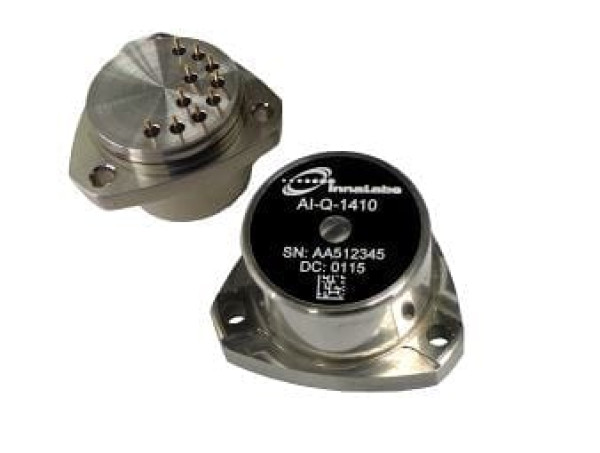

AI-Q-1410 Servo Accelerometer

Servo accelerometer

Range +/- 60g
1 yr bias stability <1000 µg
1 yr scale factor stability <1000 ppm
Equivalent or better than QA-1400

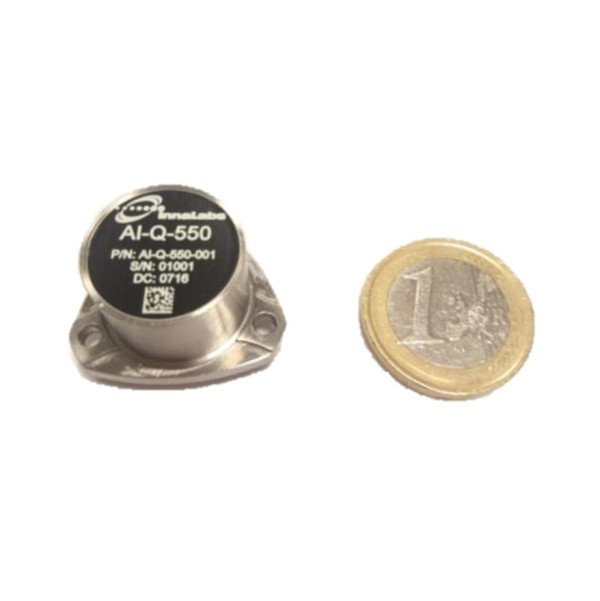

AI-Q-550

AI-Q-550/560 Servo Accelerometer

Servo accelerometer

Range +/-80g (15g)
1 yr bias repeatability <1 µg
1 yr scale factor stability <600 ppm
Temperature -55 to 105 Deg C

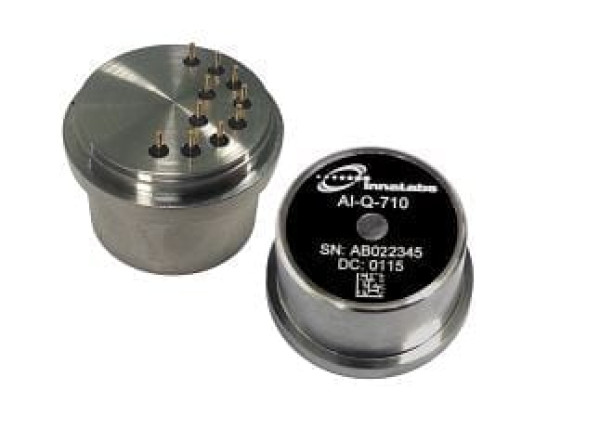

AI-Q-710/810 Servo Accelerometer

Servo accelerometer

Range +/-30g (15g)
1 yr bias stability <1200 µg
1 yr scale factor stability <1200 ppm
Equivalent or better than QA-700
