Miniature Tension and Compression

Welcome to StrainSense's Miniature Tension and Compression Force Sensors page. Our Miniature Tension and Compression Force Sensors are compact and highly sensitive sensors designed to measure both tensile and compressive forces in small spaces. They are commonly used in applications such as material testing, robotics, and medical devices. At StrainSense, we offer a wide range of Miniature Tension and Compression Force Sensors that are designed to provide high accuracy and reliability. We work with industry-leading manufacturers to offer a variety of sensors with different ranges, outputs, and accuracies to meet your specific requirements. Some variants have a high level output meaning they have the smallest size and are fatigue rated. All have very good off axis resistance and high accuracy. Our Miniature Tension and Compression Force Sensors are designed to be easy to install and integrate into your application. They come in different sizes and shapes, and can be customized to suit your application's specific needs. Our team of experienced engineers can work with you to design a sensor that meets your exact requirements, whether it's a customized size, output, or mounting configuration. Explore our range of Miniature Tension and Compression Force Sensors to find the ideal sensor for your project, or contact us today to discuss your requirements with one of our experts.

Please wait, loading results...

Miniature Tension and Compression

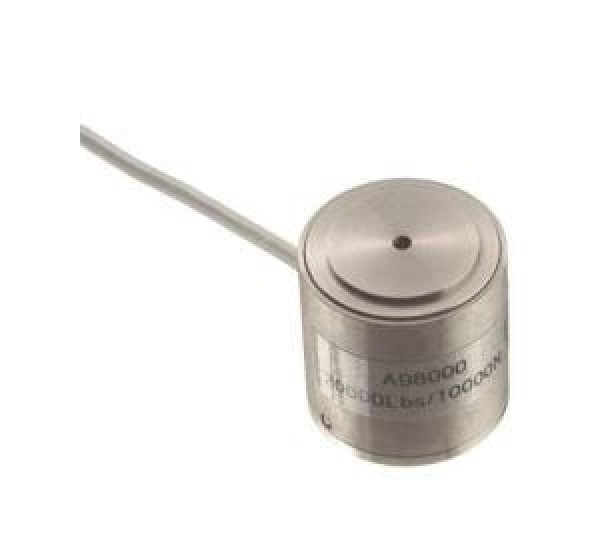

ELHM miniature

Miniature, low mass low noise

Ranges 0-2.5 kN to 50 kN
Output 2 mV/V
Accuracy 0.3% full scale
Compression and tension/compression

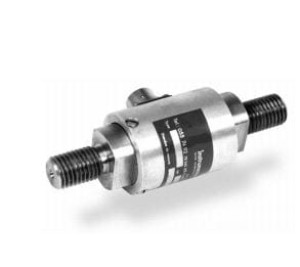

FN3002 high range

Miniature tension/compression

Ranges 0-10kN to 2000kN
Output 2mV/V or voltage
Accuracy 0.25% full scale
High IP protection available

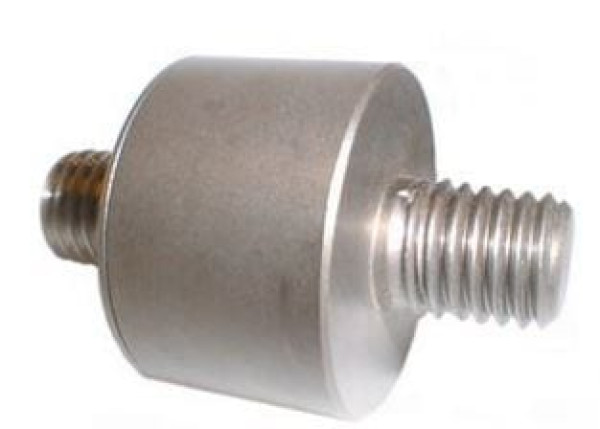

TCE Tension cell

Tension & Compression cell

Range 0-100N to 20kN
Output 2 mV/V
Accuracy 0.25% full scale
High natural frequency

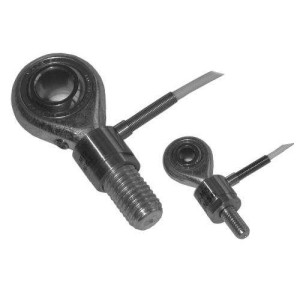

XFU400

XFU400 rod end bearings

Miniature load, rod end bearing

Range 0-500 N to 0-5 kN
Output +/- 10 mV/V
Accuracy 0.3% full scale
Tension and Compression

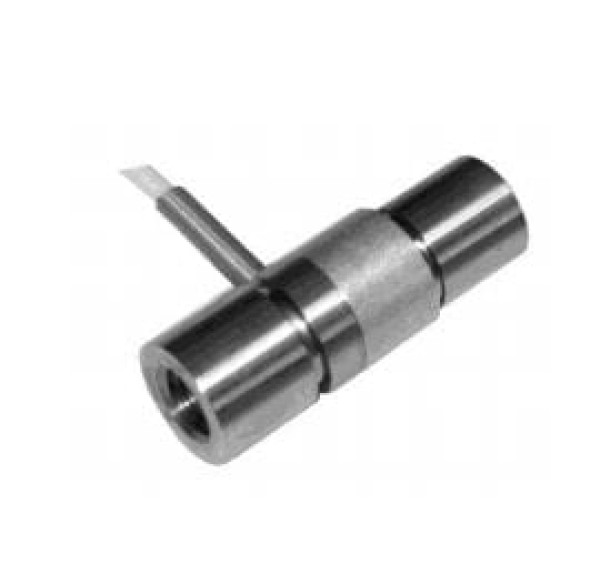

XFTC322 high temperature

Miniature load cell, high temperature

Range from 0-5kN to 0-10kN
Output mV/V or voltage
Accuracy 0.5% full scale
High temperature -55 to 175 ° C

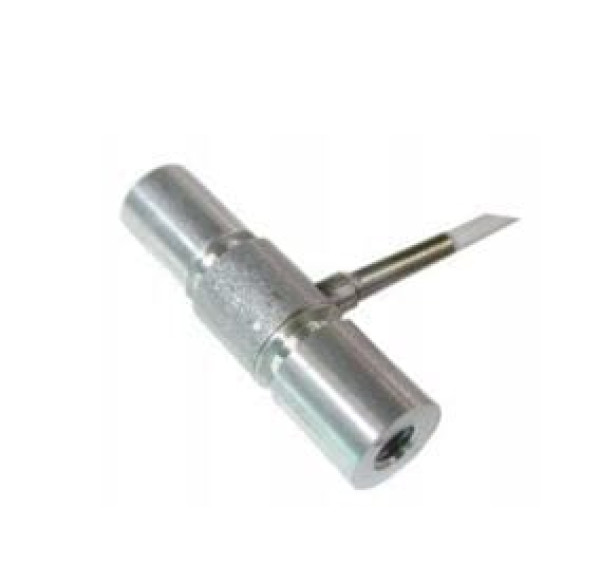

XFTC321 high output

Miniature load cell, high output

Range 0-500N to 0-10kN
Output 5 mV/V or 10 mV/V
Accuracy 0.5% full scale
Compact design

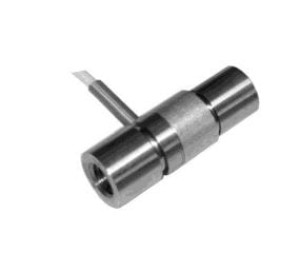

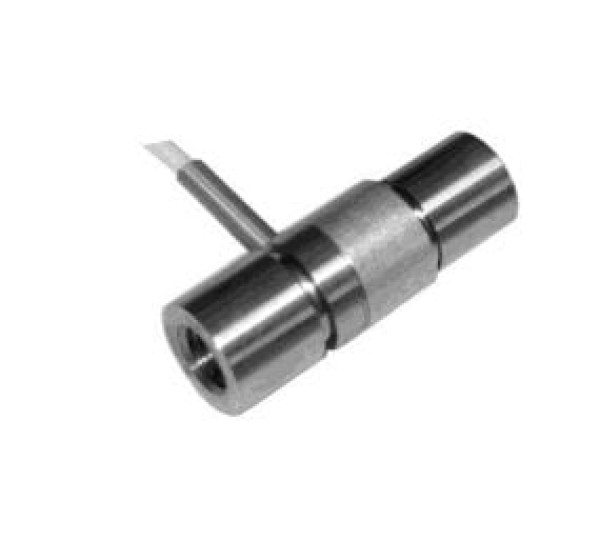

XFTC320 high output

Miniature load cell, high output

Ranges 0-2N to 0-2kN
Output 10 mV/V or voltage
Accuracy 0.5% full scale
High overload capacity

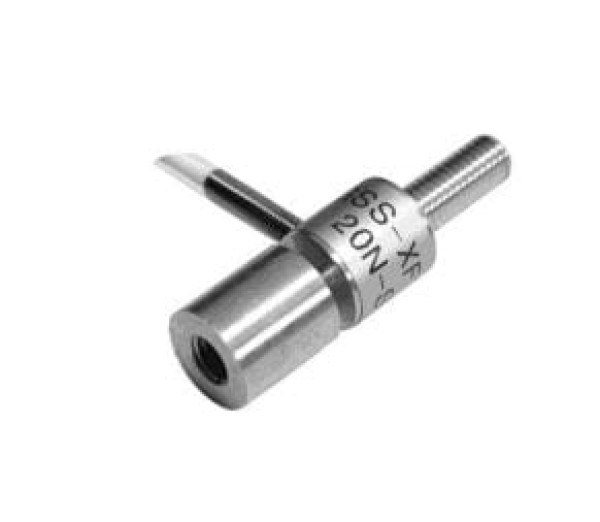

XFTC311 miniature

Load cell, miniature high output

Range 0-500N to 0-10kN
Output 5mV/V to 10 mV/V
Accuracy 0.5% full scale
Compact, small size

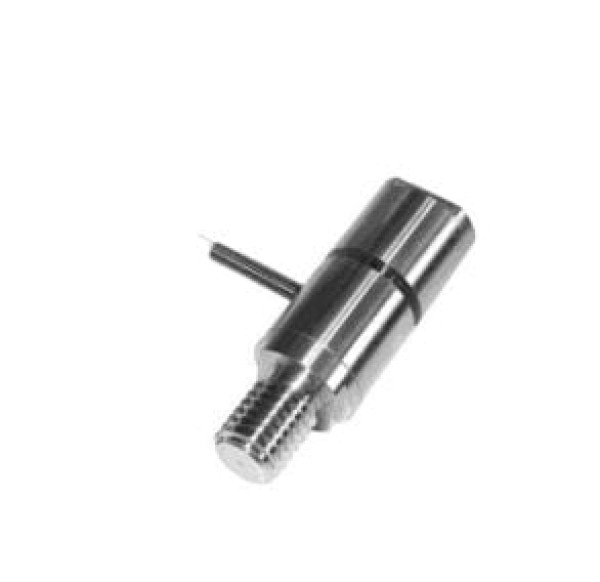

XFTC310 miniature

Load cell, miniature high output

Range from 0-2N to 0-2KN
Output 10 mV/V or voltage
Accuracy 0.5% full scale
High overload capacity

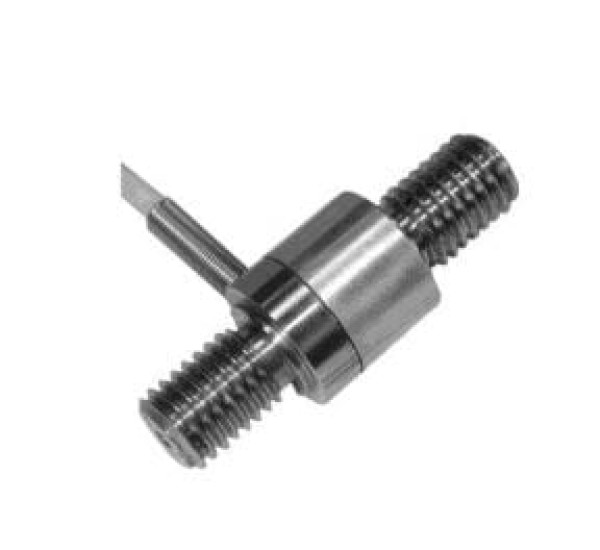

XFTC302 high temperature

Miniature high temperature load cell

Range from 0-5kN to 0-10kN
Output mV/V or voltage
Accuracy 0.5% full scale
High Temperature -55 to +175° C

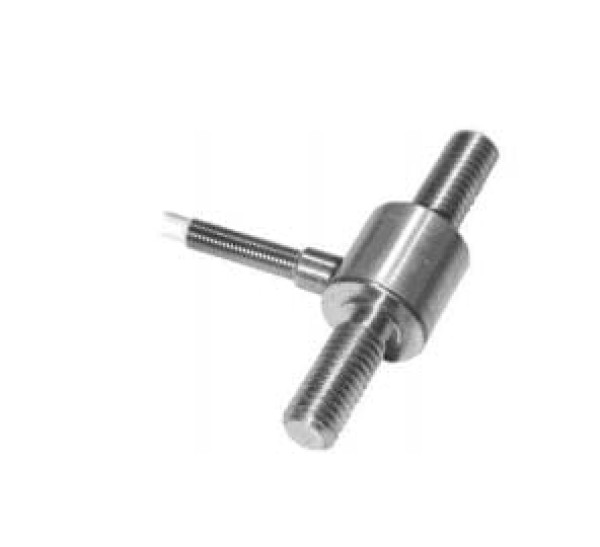

XFTC301 high output

Miniature load cell, tension and/or compression

Ranges 0-500N to 0-10kN
Output 5 or 10 mV/V
Accuracy < 0,5% FS
High stiffness

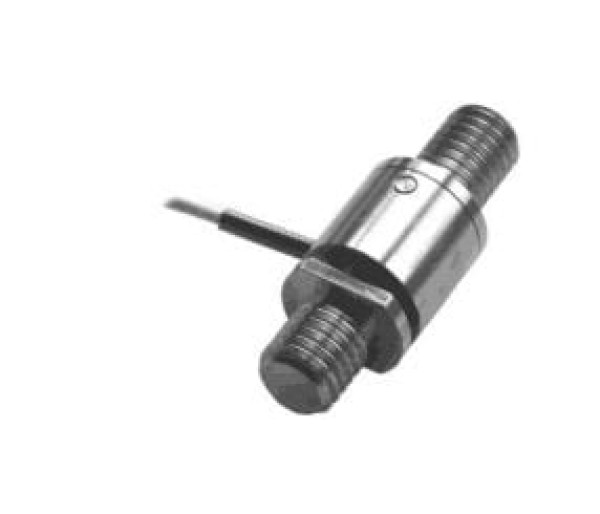

XFTC300 compact

Miniature, compact high output load cell

Ranges 0-2N to 0-2kN
Output 10mV/V or voltage
Linearity 0.5% Full scale
High fatigue applications

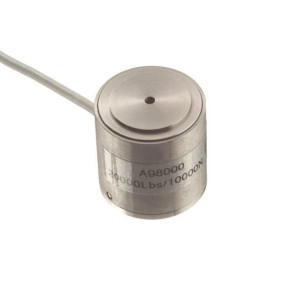

ELHS

ELHS high output

Miniature load cell, semi conductor

Ranges from 1kN to 50kN
Output 20 mV/V
Accuracy 0.5% full scale
Compression and tension/compression

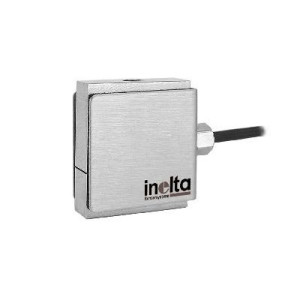

FS09

FS09 Miniature S Cell

Low range Miniature load cell

Range 0-5, 0-10, 0-20 N
Output 1 mV/V or amplified
Accuracy 0.7% full scale
Compact small size
