IMU Digital output

Inertial measurement unit (IMU) The IMU is a sensor that measures triaxial acceleration and triaxial angular velocity. The IMU consists of an accelerometer, which can output linear acceleration signals on three axes, and a gyroscope, which can output angular velocity signals on three axes. Inertial Measurement Units (IMUs) feature low noise MEMS sensors and VELOX™ high speed processing are ideal for precision motion measurement in SWaP constrained applications. These IMUs pass extensive factory testing and calibration over environmental conditions including temperature, shock and vibration. 10 kHz data rate, 16/24 or 32 bit and RS-422, RS-485 or CAN outputs.

Please wait, loading results...

IMU Digital output

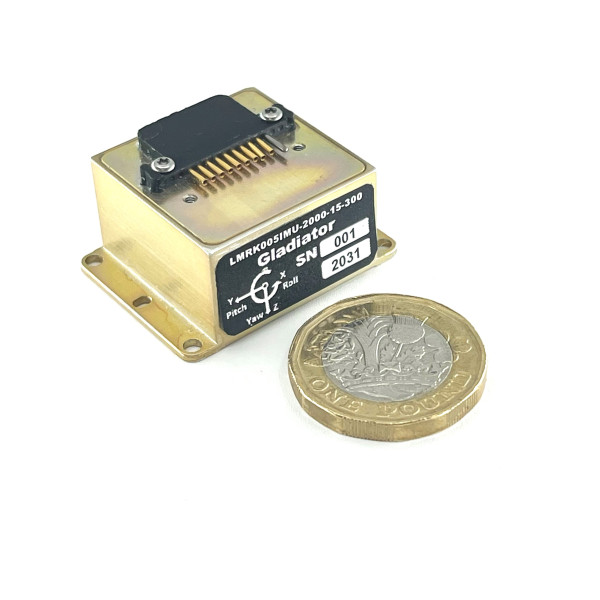

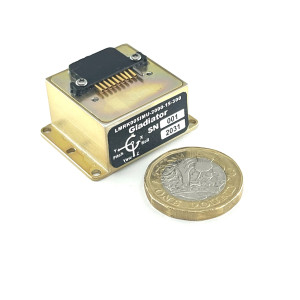

LMRK005_IMU-1

Landmark 005 IMU

Digital output 3-Axis IMU

Range 490 Degrees/sec +/-15g
Bandwidth to 600 Hz
Output RS422/RS485
Output data rate to 10 kHz

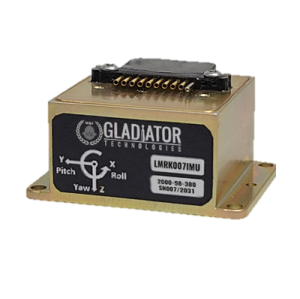

LMRK007_IMU

Landmark 007 IMU

Digital output 3-Axis IMU

Range 2000 Degrees/sec +/-98g
Bandwidth to 600 Hz
Output RS422/RS485
Output data rate to 10 kHz

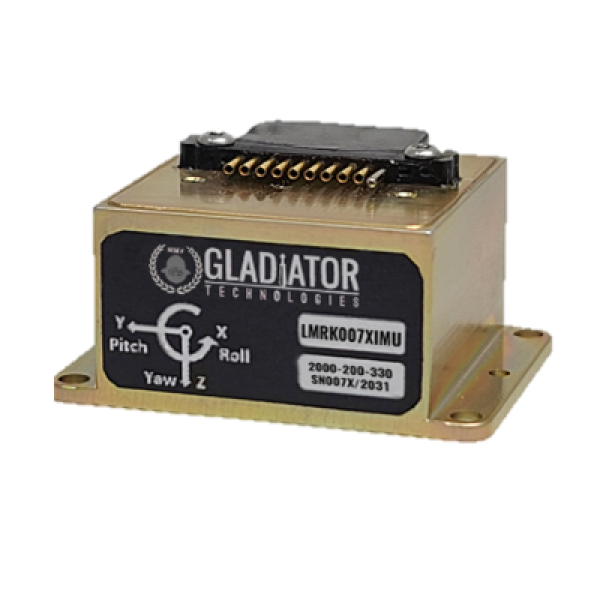

LMRK007X_IMU

Landmark 007X IMU

Digital output 3-Axis IMU

Range 2000 Degrees/sec +/-200g
Bandwidth to 600 Hz
Output RS422/RS485
Output data rate to 10 kHz

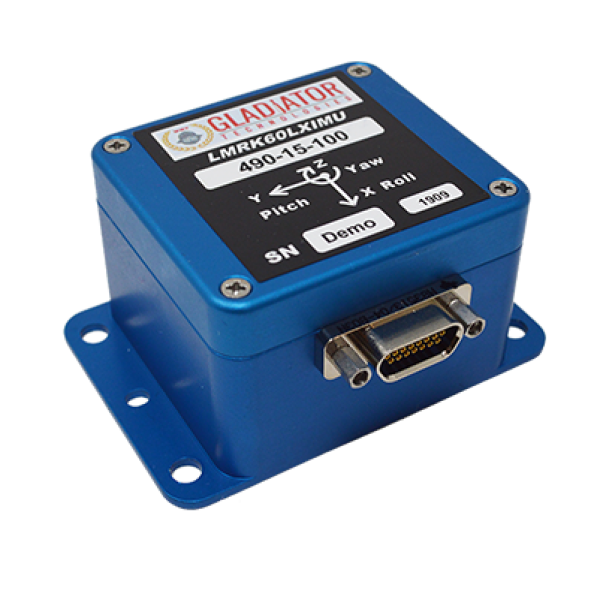

LMRK60LX_IMU

Landmark 60LX IMU

Digital output Six-Axis IMU

Range 490 Degrees/sec +/-15g
Bandwidth 250 Hz
Output RS422/RS485 & CAN 2.0B
Output data rate to 4 kHz

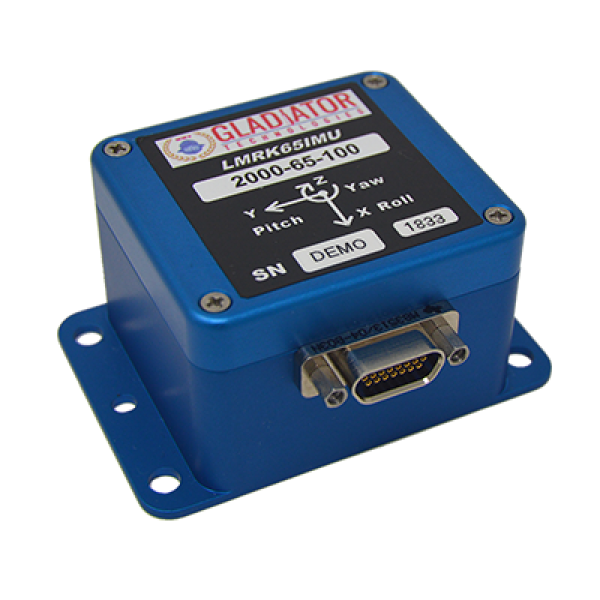

lmrk65-imu

Landmark 65 IMU

Digital output Six-Axis IMU

Range 2000 Degrees/sec +/-40g
Bandwidth 250 Hz
Output RS422/RS485 & CAN 2.0B
Low Noise 0.002 Deg/sec/Hz

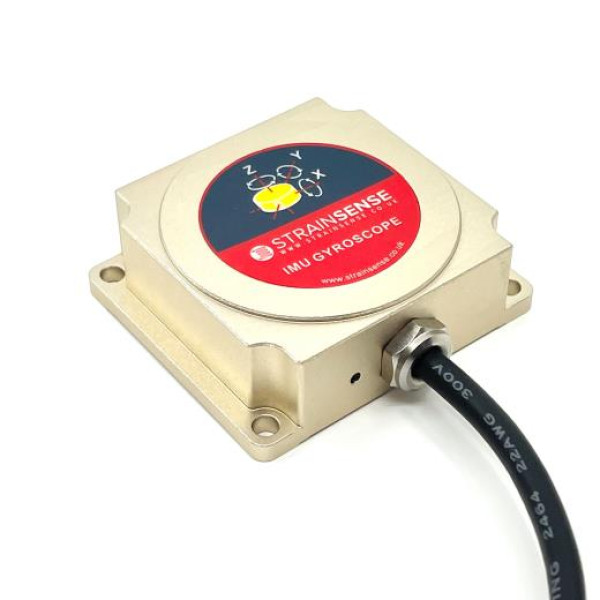

TL725D

TL725D Commercial IMU

Digital output 3-Axis IMU

Triaxial Gyroscopic sensor
Robust IP67 Package
Temperature Range -40 to +80°C
Digital CANBUS Output
Commercial & Industrial applications
