Essential Components of Data Acquisition Systems
In the era of data-driven decision making, organizations across various industries heavily rely on data acquisition systems to gather valuable information for analysis and insights. Data acquisition systems play a crucial role in collecting and monitoring data from various sources, enabling businesses to make informed decisions and optimize their operations. These systems consist of several essential components that work together to ensure accurate and reliable data collection. In this article, we will explore the key components of data acquisition systems and their significance in the data collection process.
Contents
At the heart of any data acquisition system are sensors and transducers. These devices are responsible for converting physical parameters, such as temperature, pressure, voltage, or flow rate, into electrical signals that can be measured and recorded. Sensors and transducers come in various forms, depending on the specific application requirements. They can be as simple as a temperature sensor or as complex as an array of sensors for monitoring multiple parameters simultaneously. These devices provide the initial interface between the physical world and the data acquisition system.
Once the electrical signals are generated by sensors and transducers, they often require conditioning to ensure their compatibility with the data acquisition system. Signal conditioning involves amplifying weak signals, filtering out noise and interference, and converting analogue signals into digital format. Amplifiers, filters, and analogue-to-digital converters (ADCs) are commonly used components in signal conditioning. Amplifiers increase the signal strength, filters remove unwanted frequencies, and ADCs convert analogue signals into digital values that can be processed by a computer. Our signal conditioners featuring high accuracy, programmable input ranges, signal filtering and full isolation.
The data acquisition (DAQ) device is the central component of a data acquisition system. It serves as the interface between the conditioned signals and the computer for data storage and analysis. Data acquisition systems can be standalone devices or computer-based systems with plug-in DAQ cards. They are responsible for sampling and digitizing the conditioned signals at a predefined rate, typically measured in samples per second (SPS) or hertz (Hz). Data acquisition systems also provide various connectivity options, such as CAN, EtherCAT, USB, Ethernet, or wireless, to transfer data to a computer for further processing.

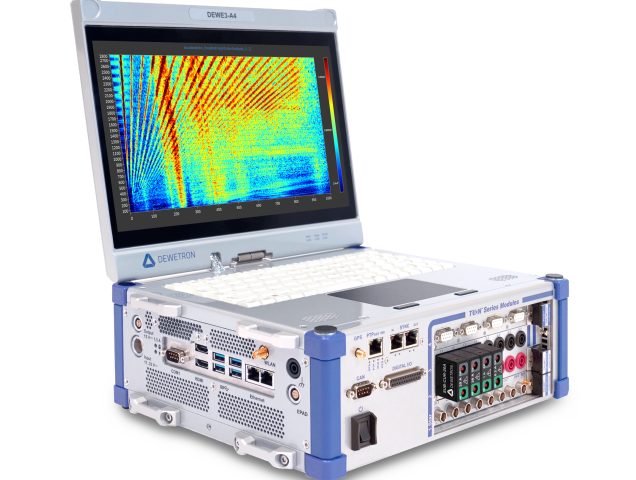

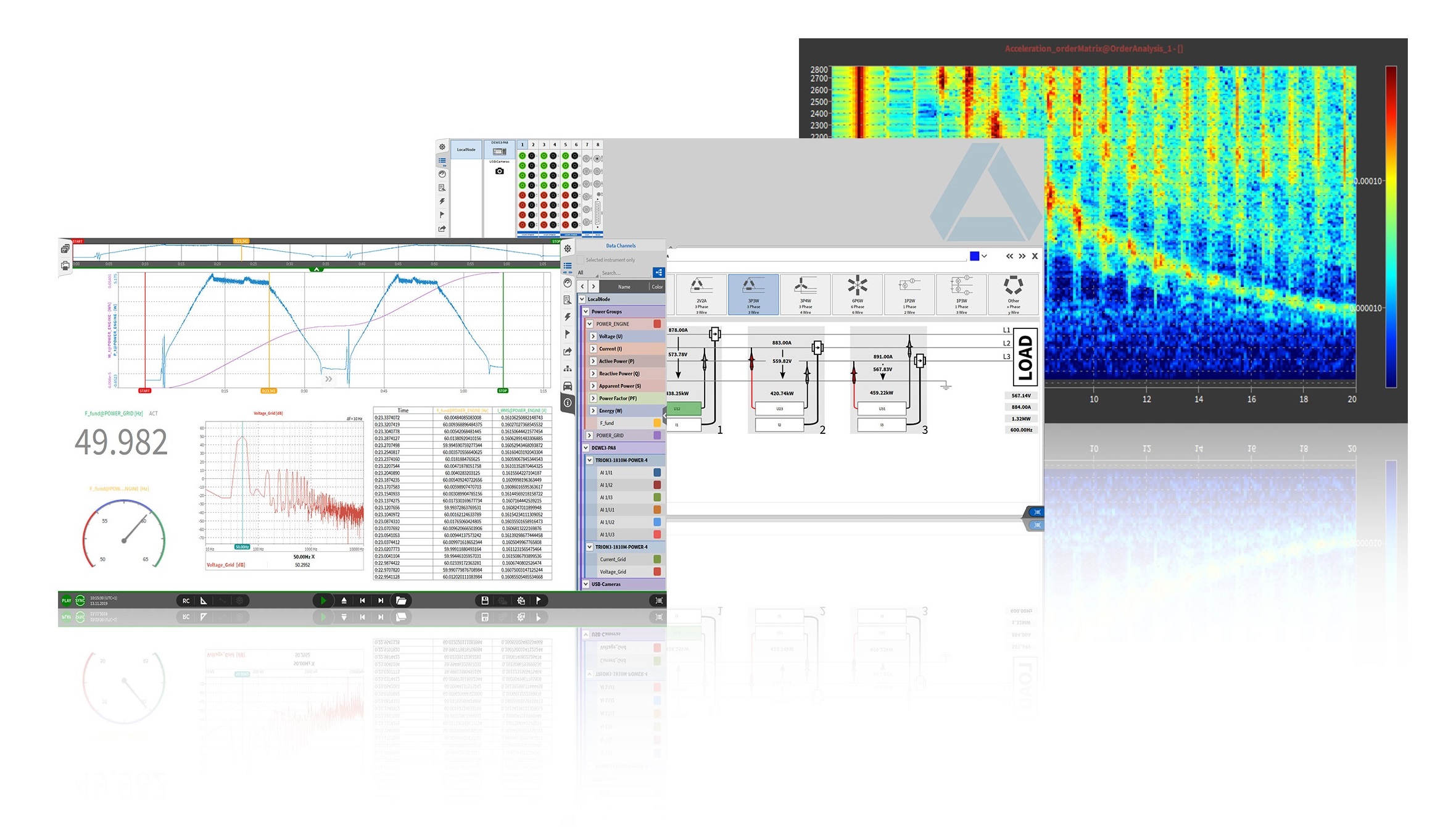

To interact with the data acquisition system and retrieve the collected data, specialized software and drivers are required. The software provides a user-friendly interface for configuring the system, setting up measurement parameters, and initiating data acquisition. It also allows for real-time monitoring of data and often includes advanced features for data analysis and visualization. Additionally, the software needs to communicate with the drivers specific to the data acquisition hardware, ensuring seamless integration and data transfer between the system components. Our Oxygen data acquisition and analysis software provides all of the above features in an easy to use, intuitive yet powerful user interface.
A reliable power supply is critical for the proper functioning of a data acquisition system. Most data acquisition components, including sensors, transducers, signal conditioning circuits, and data loggers, require a stable power source to operate effectively. The power supply unit should provide clean and regulated power, free from voltage fluctuations and electrical noise. Battery-powered data acquisition systems are also common in applications where portability and autonomy are essential.
The interconnection of various components in a data acquisition system is achieved through cables and connectors. High-quality cables and connectors ensure accurate transmission of signals without any loss or interference. Depending on the application, shielded cables may be necessary to reduce electromagnetic interference (EMI) and ensure data integrity. Proper cable routing and management also play a vital role in maintaining a tidy and organized setup, minimizing the risk of signal degradation or accidental disconnections.
To ensure accurate and reliable measurements, periodic calibration of the data acquisition system is crucial. Calibration involves comparing the readings obtained from the data acquisition system with known reference values or calibration standards. This process helps identify and correct any systematic errors or drifts in the measurement system. Calibration standards, such as certified temperature probes or voltage references, provide traceable and reliable references for calibration. Regular calibration ensures the data acquisition system maintains its accuracy over time.
In conclusion, data acquisition systems are essential tools for collecting and monitoring data in various industries. The components discussed in this article, including sensors and transducers, signal conditioning, data loggers, software and drivers, power supply, cabling and interconnections, and calibration, work together to enable accurate and reliable data collection. Understanding the role and significance of each component is crucial for designing and implementing effective data acquisition systems that meet specific application requirements. By utilizing these essential components, organizations can harness the power of data to drive informed decision making and optimize their processes.
