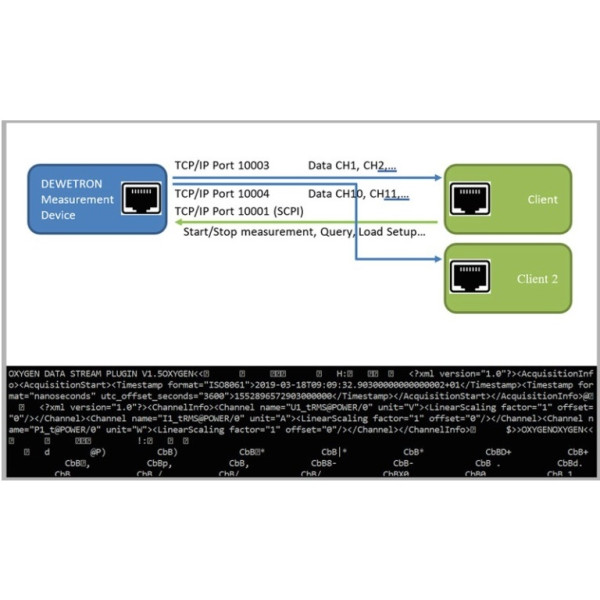

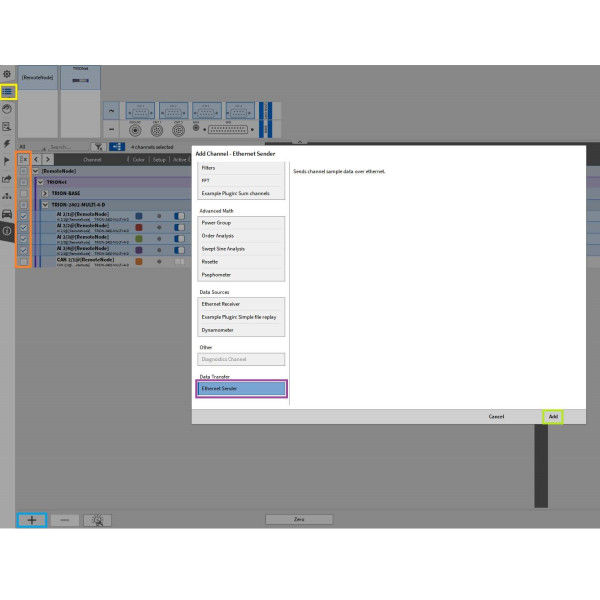

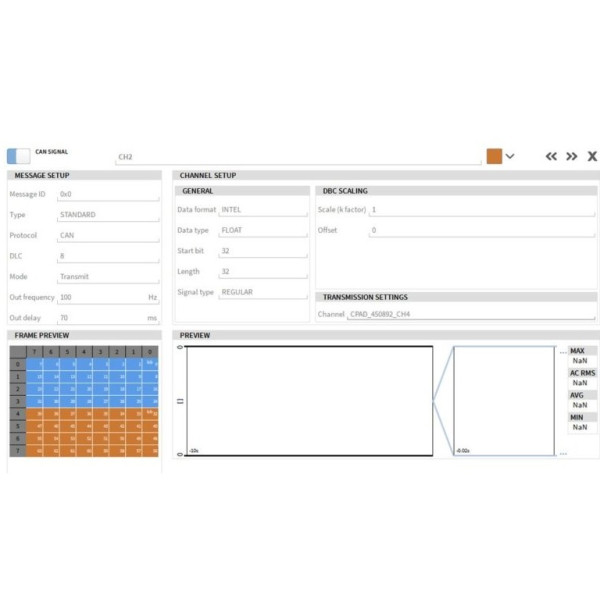

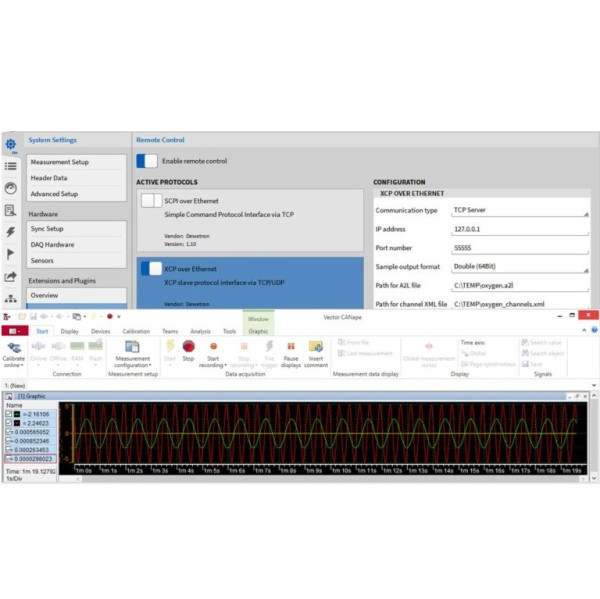

Data output options for Oxygen transmit data in a range of formats. Their primary application is test bed integration where a subset of data channels are required for control or monitoring. CAN output and Ethernet Sender are used for applications up to 100 Hz per channel. Where high speed is required DataStream is available to transmit raw waveforms up to 2 MHz. XCP over Ethernet is used to transmit data into Canape and INCA calibration environments at up to 10 kHz. Note also, the TRION-EtherCAT module is available for EtherCAT data output. In all formats, a database file is created for ease of setup at the test bed receiver. Both analogue and calculated channels, e.g. power data, can be transmitted.
