Smart Interfaces

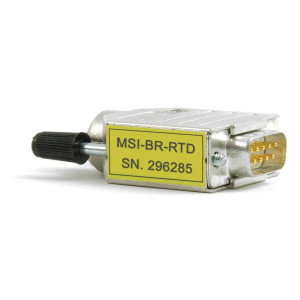

RTD smart interface for PT100 to PT2000

• Supports PT100, PT200, PT500, PT1000, PT2000
• Temp range -200 to 850 Deg C
• Accuracy to +/-0.07% of reading
• Auto identification by TEDS

Modular smart interface

• Input: IEPE® sensors, typ. accelerometer, microphone
• Sensor excitation: 4mA
• Bandwidth: 1.4Hz to 100kHz
• Accuracy: ±0.2 %

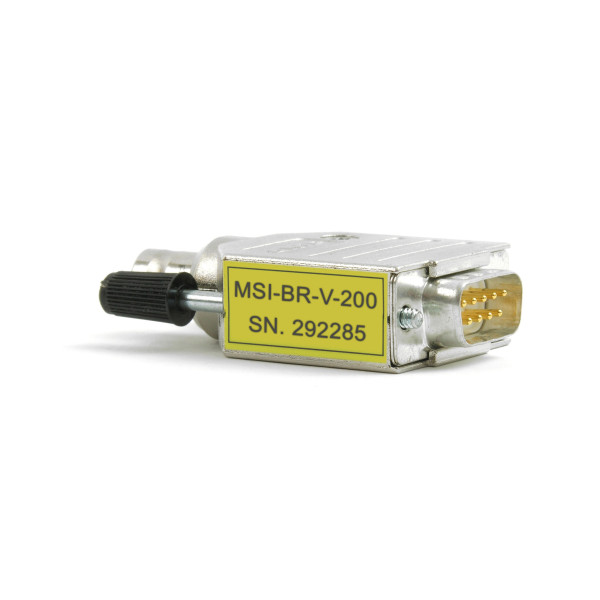

Modular smart interface

• Input: Voltage up to 200 V
• Bandwidth: DC to 100 kHz
• Accuracy: ±0.1 %
• Sensor connection: BNC

Modular smart interface

• Input: 4 to 20 mA sensors
• Sensor excitation: 5 to 48 V AUX PWR
• Bandwidth: DC to 100 kHz
• Accuracy: ±0.1 %

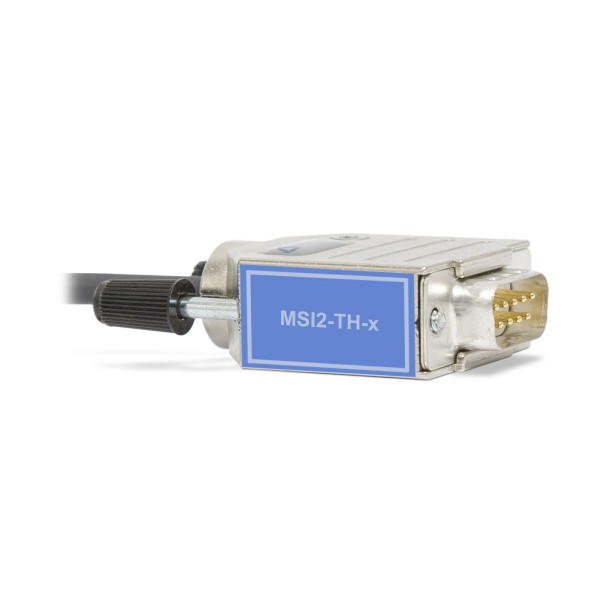

Modular smart interface

• Input: Thermocouple sensor, standard models for type K, J, T. Others on request
• Bandwidth: DC to 100 kHz
• Accuracy: ±1°C
• Sensor connection: Mini TC socket

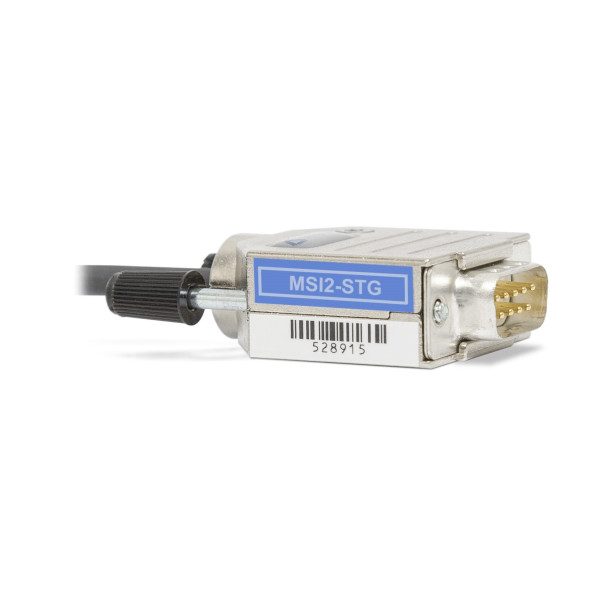

Modular smart interface

• Input: Bridge-type sensors (full / half / quarter)
• Sensor excitation: 5 V and 10 V
• Bandwidth: 100 kHz
• Accuracy: ±0.1 %

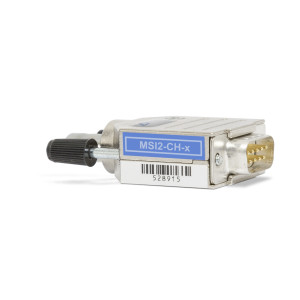

Modular smart interface

• Input: Charge type sensors up to 100000 pC
• Bandwidth: 0.08 Hz to 300 kHz
• Accuracy: ±0.5 %
• Sensor connection: BNC

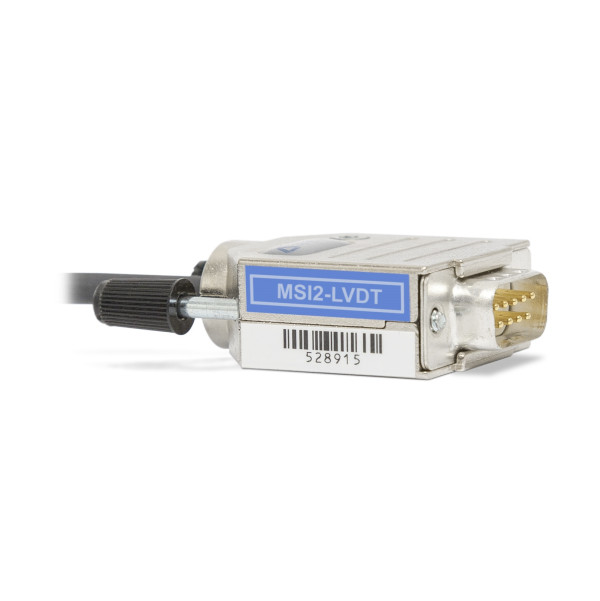

Modular smart interface

• Input: LVDT and RVDT sensors, 5 wire connection
• Sensor excitation: AC supply 1 to 3.5 V at 2.5, 5 and 18 kHz
• Bandwidth: 1 kHz
• Accuracy: ±0.1 %

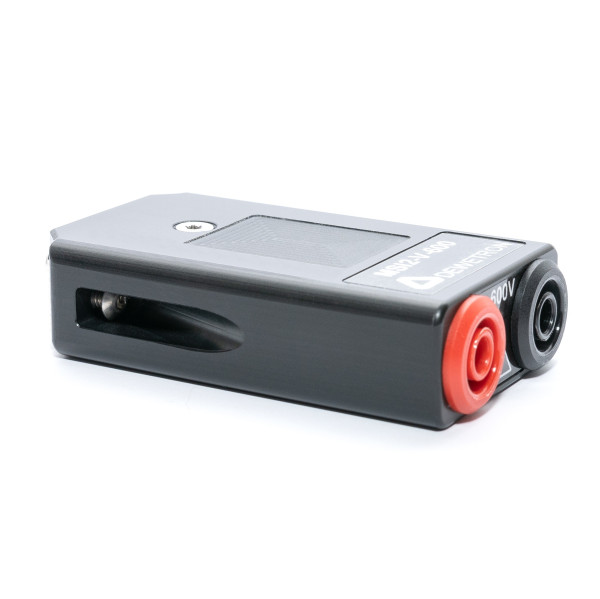

Modular smart interface

• Input: Voltage up to 600V RMS (1000V peak)
• Bandwidth: 60kHz
• Accuracy: ±0.1 %
• Sensor connection: Safety banana sockets
