Analogue Modules

TRION analogue modules are available for low voltage, high voltage, bridge (full / half / quarter), IEPE, current and resistance. There are up to 8 input channels per module. Sampling is simultaneous with sample rates from 100 S/s to 5 MS/s per channel, and configurable anti-aliasing filters. Sensor excitation is available through the input connector on many modules. Connector types include Lemo 1B, Lemo 0B, DSUB9, 4mm banana plugs, BNC, RJ45. The TRION-MULTI module provides maximum flexibility on input type, it also includes 1x CAN interface and 2x counter inputs. For all module types, just plug into your chassis and use.

Please wait, loading results...

Analogue Modules

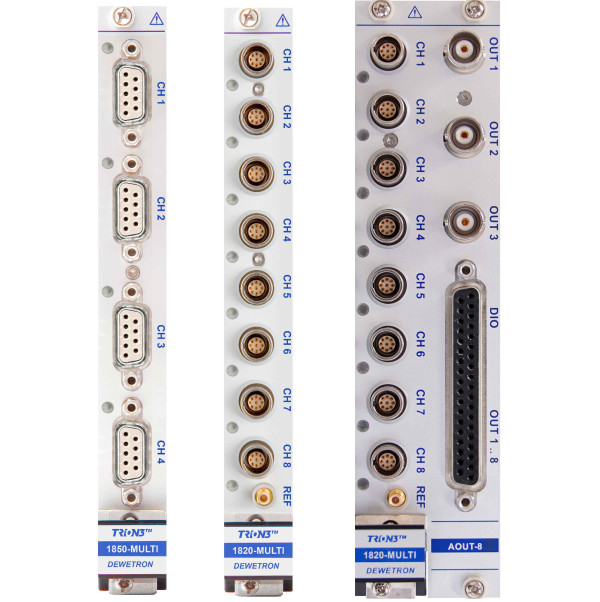

trion-18xx-multi_11zon

Analogue Module TRION(3)-18xx-MULTI

Universal analogue input module

  • 4 or 8 isolated channels
  • Sample rate to 2 MS/s 24 bit
  • Accuracy from +/- 0.02% of reading
  • CAN2.0 port and counter inputs

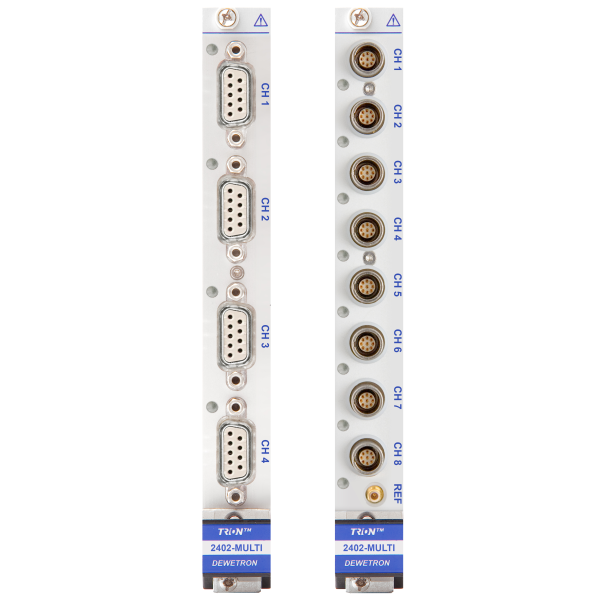

TRION-2402-MULTI

Analogue Module TRION-2402-MULTI

Universal analogue input module

  • 4 or 8 isolated channels
  • Sample rate to 200 kS/s 24 bit
  • Accuracy from +/- 0.02% of reading
  • High speed CAN2.0 port

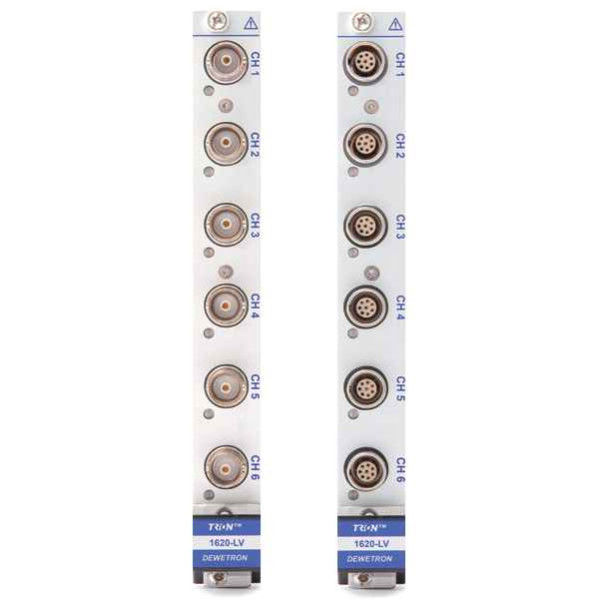

trion-1620-acc-lv_11zon

IEPE Module TRION-1620-ACC

IEPE / voltage / current module

  • 6 isolated channels
  • Sample rate to 2 MS/s 16 bit
  • Accuracy +/- 0.02% of reading
  • Isolation 1.5 kV

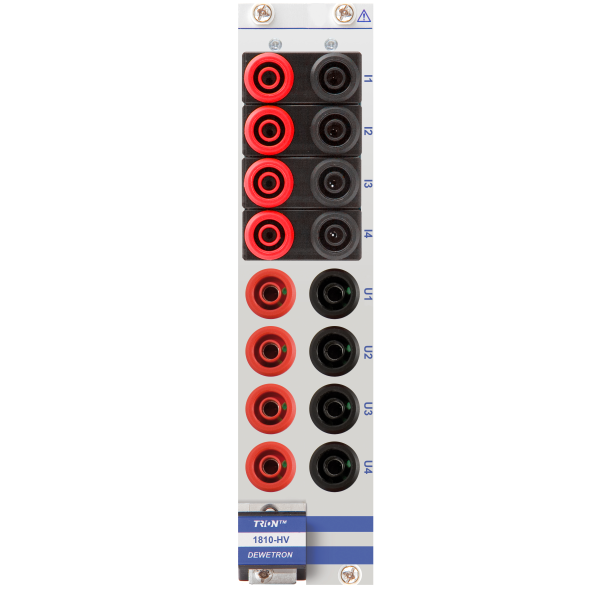

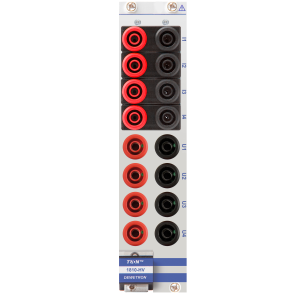

TRION-1810-HV-8

HIGH VOLTAGE MODULE TRION-1810-HV-8

High Voltage Module

  • High voltage inputs up to 1kV RMS
  • Up to 8 voltage channels
  • Sampling up to 1 MS/s
  • 24 bit resolution
TRION3-1810-SUB-8

BASE MODULE FOR SUB MODULES TRION3-1810-SUB-8

TRION base module for sub modules

  • Up to 8 channels
  • Modular voltage and current inputs
  • Up to 600V rms (+/-1500V peak)
  • Up to 10 MS/s per channel sampling
TRION-SUB-modules

TRION POWER SUB-MODULES

TRION sub-modules for use with TRION-POWER and TRION-HV modules

  • Voltage and current inputs
  • Up to 600V RMS (+/-1500V peak)
  • Up to 20A RMS (+/-40A peak)
  • Isolated, high bandwidth

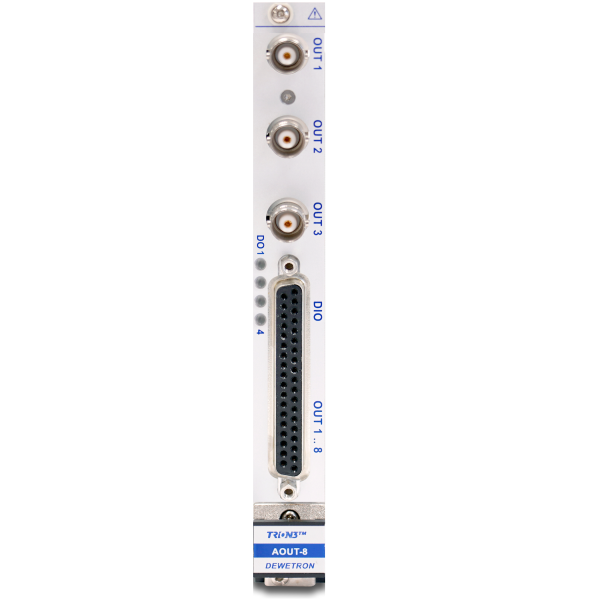

TRION3-AOUT-8

ANALOGUE OUTPUT MODULE TRION3-AOUT-8

Analogue output module

  • 8 isolated output channels
  • Voltage or current output
  • FPGA based function generator
  • Data replay or constant output

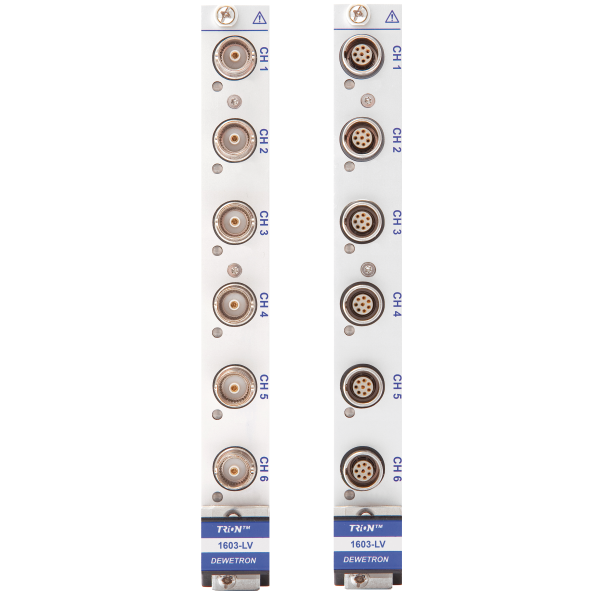

TRION-1603-LV-6

Voltage Module TRION-1603-LV

Voltage / current input module

  • 6 isolated channels
  • Sample rate to 250 kS/s 16 bit
  • Accuracy +/- 0.02% of reading
  • Low pass filter options

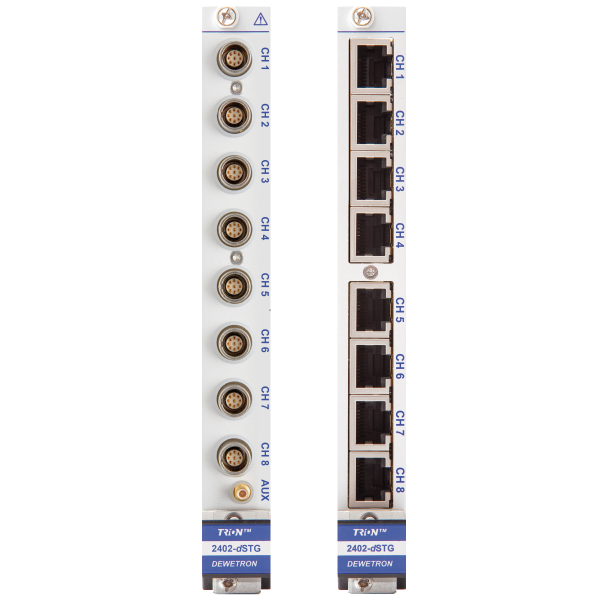

TRION-2402-dSTG

Universal Module TRION-2402-dSTG

Universal analogue input module

  • 8 differential channels
  • Sample rate to 200 kS/s 24 bit
  • Accuracy from +/- 0.02% of reading
  • Lemo 0B and RJ45 connector options

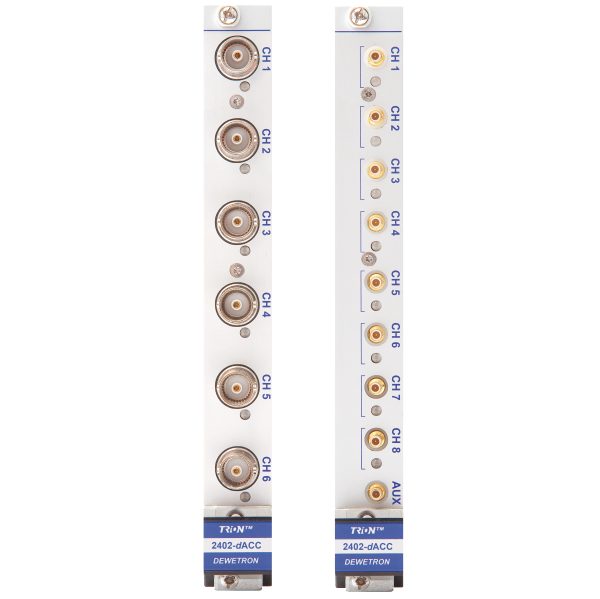

TRION-2402-dACC

Differential Module TRION-2402-dACC

IEPE / voltage / current module

  • 6 or 8 differential channels
  • Sample rate to 200 kS/s 24 bit
  • Accuracy +/-0.02% of reading
  • BNC and SMB connector options
