Digital Modules

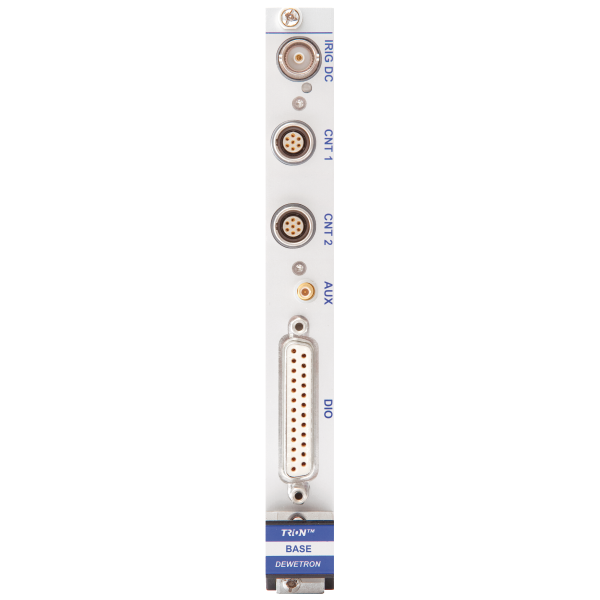

Counter, DIO and synchronization module

• 2 advanced counters
• 8 DIO and 8 DI input channels
• Camera trigger and acquisition clock output
• Sensor power supply 5V and 12V

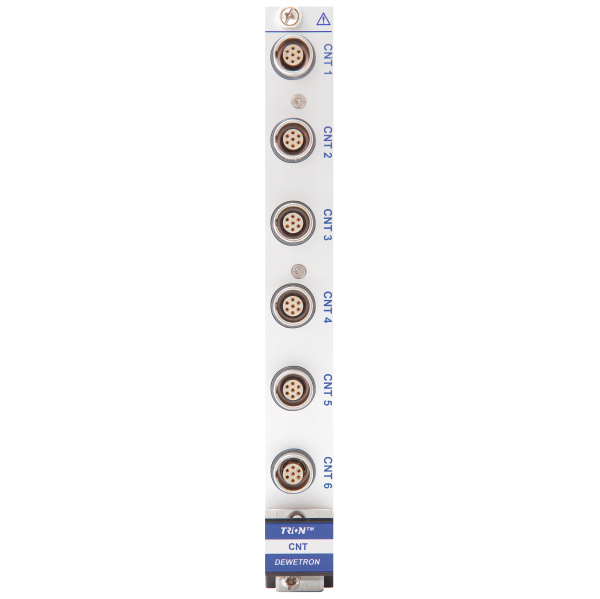

Isolated advance counter module

• 6 counters or 18 digital inputs
• Sampling 2MS/s per channel
• Encoder, events, frequency, pulse width
• X1, X2, X4, A-Up/B-Down modes

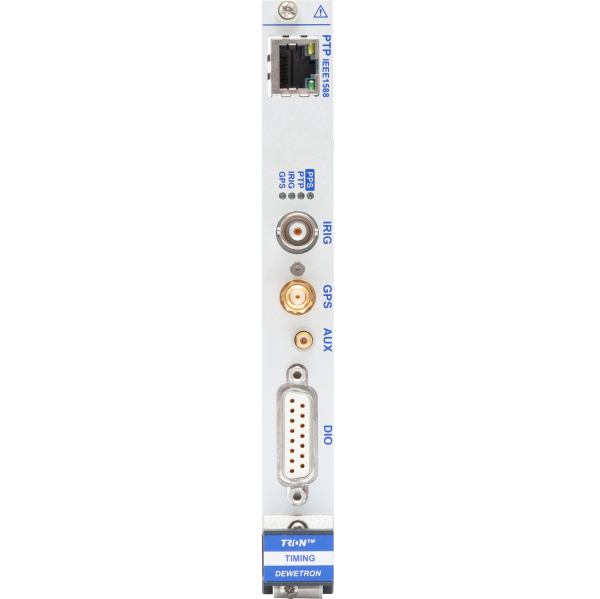

Timing and synchronization module

• PTP, GPS, PPS, IRIG timing inputs
• GPS position, 10 Hz update rate
• 8 x Digital IO, 1 x counter / encoder
• Auxiliary camera trigger output

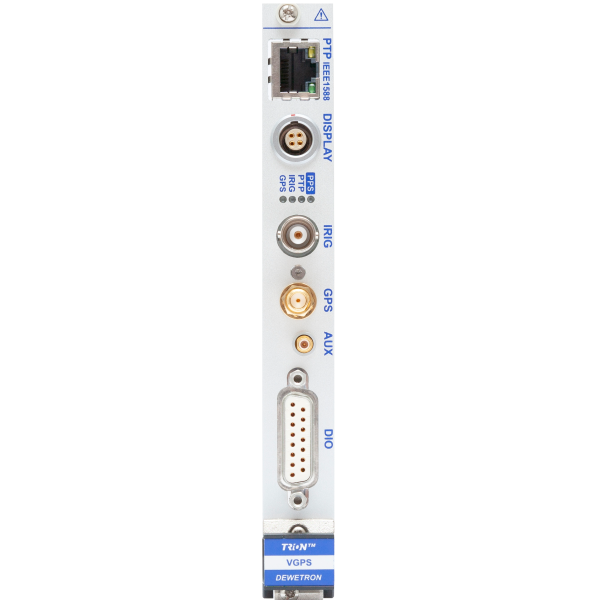

Position, speed & displacement module

• Up to 100 Hz GPS data
• Position, speed and displacement
• PTP, GPS, IRIG or PPS timing
• 8 x DIO, 1 x CTR, 1 AUX

Digital input module

• 48 isolated digital inputs
• Sample rate to 3MS/s per channel
• Sensor power supply 5V
• High isolation (channel/input)

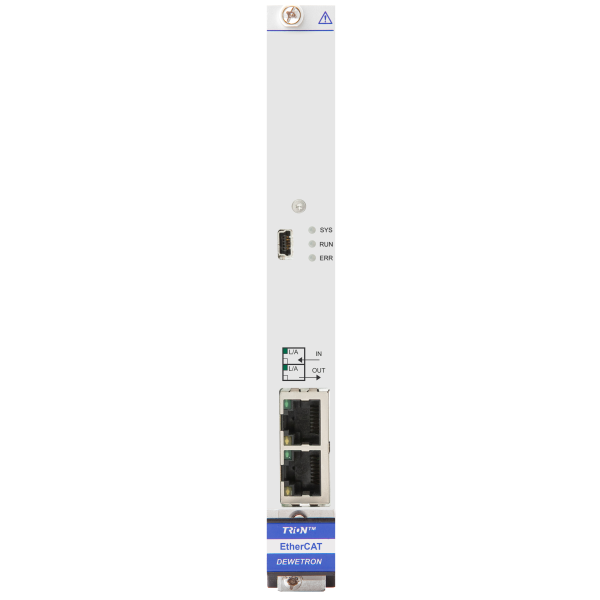

Slave interface Ethercat module

• Measurement data output
• Up to 500 samples/sec
• Up to 100 simultaneous channels
• EtherCAT slave In/Out RJ45

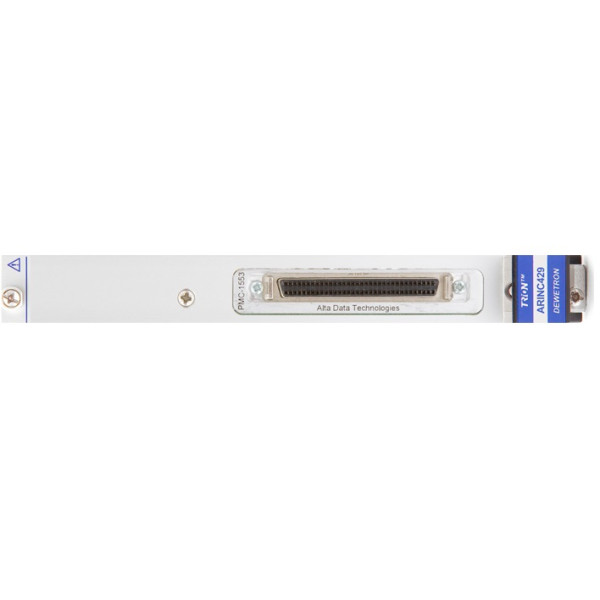

ARINC interface module

• Up to 16 channels
• Decoding of ARINC 429 signals
• Visualization of binary data
• Export of decoded signals

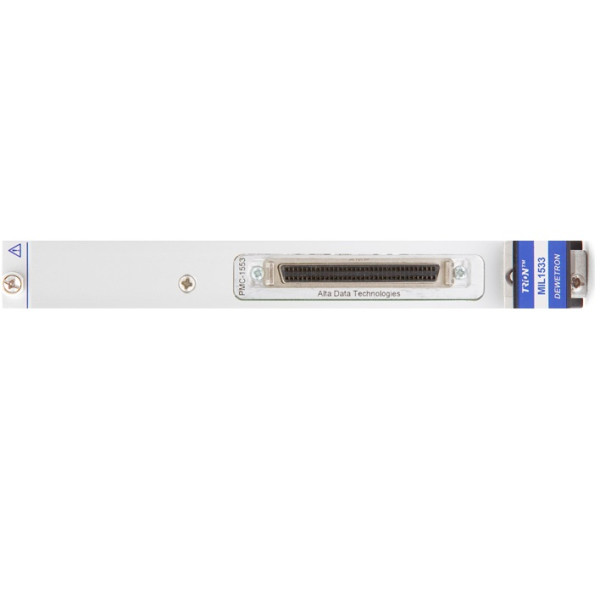

MIL-STD 1553 interface module

• Up to 4 channels
• Decoding of MIL 1553 signals
• Visualization of binary data
• Export of decoded signals
