New Range of MEMs Based Inclinometers/Tilt Sensors
We are pleased to release a brand-new range of Inclinometers

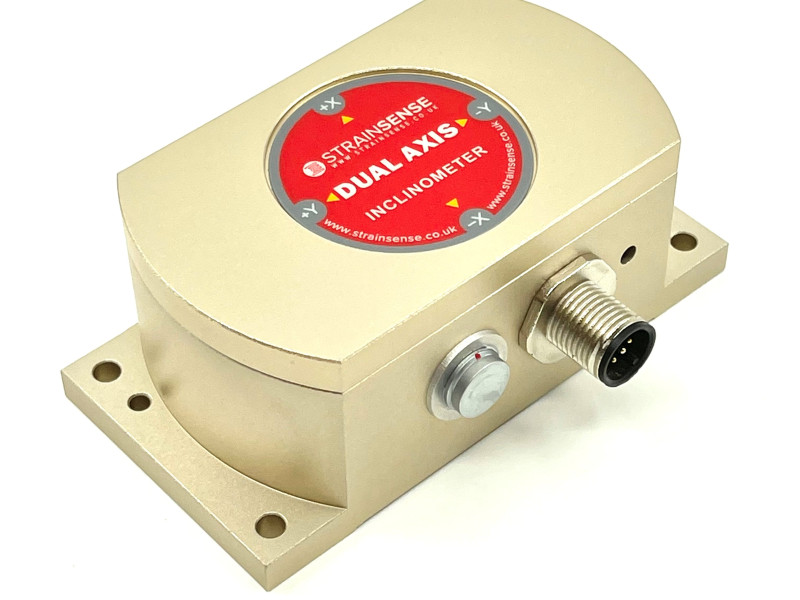

New Range of MEMs Inclinometers & Tilt Sensors
We are pleased to release a brand-new range of Inclinometers for Industrial and Research & Development based applications.
The series is broken into 4 basic series LCA, HCA, ACA and the SCA offering various levels of accuracy, stability and package style.
Current outputs (4-20mA) can be used for long transmissions up to 2000 metres. Analogue outputs are most common having 0-5, 0-10V, 0.5-4.5V or even +/-5 or 10V. Digital output version are available such as RS-232, RS-485, RS-422, TTL, PWM and CAN series which includes CANopen.
The standard inclinometer range measures +/-10 to +/-180 degrees (full 360-degree rotation) however, on request we can accommodate very low ranges, or special range requirements such as +/-1 degree.
In general, most Inclinometers are mounted horizontally to measure either X or Y axis. We can accommodate a vertically mounted sensor to measure Z axis in either single or dual axis.
The Inclinometer family is being increased to include dynamic inclinometers for higher frequency measurements and Gyros. If you have an interest, please contact us with your unique design requirements.
Click here for the full range.
Inclinometer Tilt Sensor Features
Single & Dual Axis Measurements
Analogue, Current, Digital Outputs Available
Also known as ‘tilt sensors’, ‘inclinometers’ or ‘pitch & roll indicators’
