13200C high accuracy

Product Description

Obsolete effective October 2019. Please contact us for alternatives.

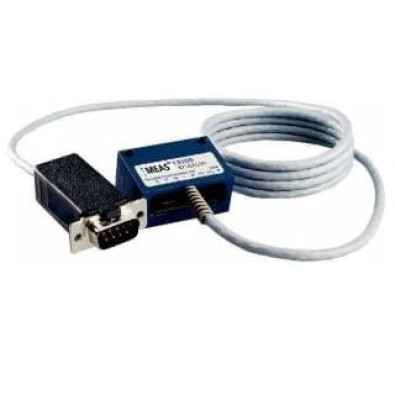

The Measurement Specialties 13200C and 23200C accelerometers include a temperature sensor in their small, rugged package. The small size and built-in power regulation allow the 13200C and 23200C to fit where other accelerometers can't.

Choose the bandwidth and range options best suited for your application to measure ±10g, ±15g, ±20g, ±25g, ±30g, ±35g, ±40g, ±50g, or ±70g accelerations on one or two axes Tested over the -40 to +85°C temperature range, the accelerometers have a nominal full scale output swing of ±2V with a zero g output level nominally at +2.5Vdc. The voltage output for the 13200C and 23200C is directly proportional to the acceleration along the axis. Each DC-coupled output is fully scaled, referenced, and temperature compensated. Unregulated DC power from +8.5 to +36 Volts is all that is required to measure acceleration and temperature. Reverse power voltages of up to -80V can be withstood indefinitely. Transients of +80V for 550ms compatible with MIL-STD-704A can be withstood with full operation.
