Product Description

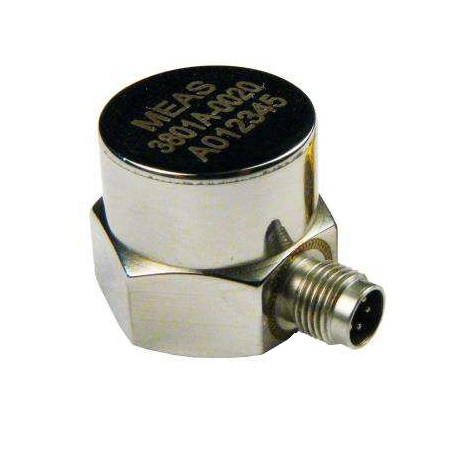

The Model 3801A is a mV output piezoresistive MEMS accelerometer in a rugged welded hermetic package. The accelerometer incorporates mechanical stops for over- range protection up to greater than 10,000g. The model 3801A is offered in ranges from ±2 to ±2000g and is gas damped to provide a wide frequency response. The accelerometer is temperature compensated to provide a stable output over the operating environment.

Ideal replacement to the Endevco 2262A or 2262CA as 10-32 stud mount and same package. The 3801 is a MEMs based device, see EGCS-D1S for Critically oil damped.
