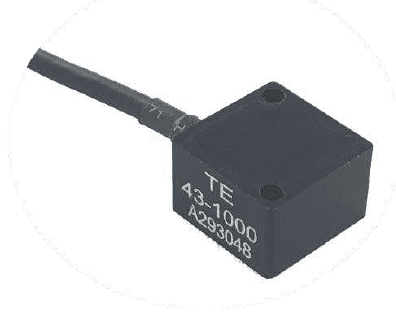

43 Triaxial DC accelerometer

Product Description

The Model 43 is a small piezo resistive triaxial accelerometer designed to be compliant to SAE-J2570 and ISO-6487 specifications. This DC accelerometer features built-in mechanical stops, anodized aluminium alloy housing and flexible cable output. The sensing element is fluid damped to extend useful frequency range and reduce the adverse effect of high frequencies ringing caused by sensor resonance excitation at high-g inputs. The model 43 accelerometer is fully encapsulated in Stycast for IP65 protection over the full operating temperature range of -20°C to +80°C. This accelerometer is designed for harsh test applications and is packaged in an anodized Aluminium housing with a rugged strain relief. The model 43 accelerometer is available in ranges from ±25g to ±5,000g and features a full bridge configuration with a nominal 1000Ω impedance that offers quick warm-up time and minimal drift, unlike lower impedance designs on the market.
