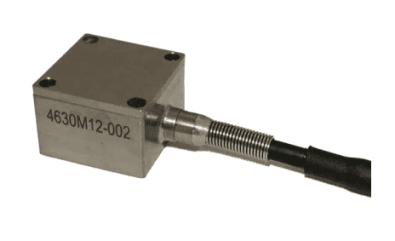

4630M12 integral cable Accelerometer

Product Description

The 4630M12 and 4630M14 series accelerometers are ultra-stable MEMS DC triaxial vibration sensors available in ranges from ±2 to ±200g. These accelerometers feature exceptional accuracy over a full operating temperature range of -55°C to +125°C with a Total Error Band of <2%. The model 4630M12 and 4630M14 accelerometers incorporate a gas damped variable capacitance MEMS sensing element with integral over-range stops for high-g shock protection and a wide bandwidth from DC to 2000Hz. The accelerometers are packaged in a miniature, welded Titanium housing with a rugged strain relief and cable with integral Polyamide over-braid designed for harsh and demanding measurement applications. Due to the robust construction, the Accelerometer is especially suited to Road Load Data and Flight Testing applications.
