633 Triaxial 6DOF

Product Description

The product has been made obsolete effective October 2022. The 634 is a suitable replacement still available.

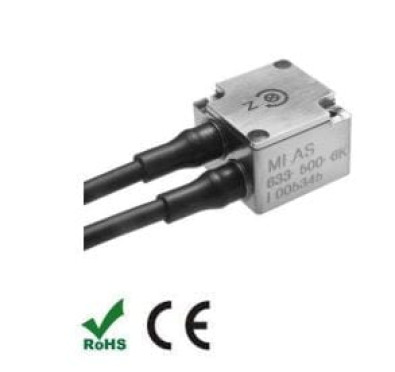

The Model 633 6-DOF Sensor is an analog sensor that includes outputs of three gyroscope/rate sensors and three DC accelerometers in one small package. The rate sensors and accelerometers are aligned orthogonally to each other which allow the user to measure motions in all 6 degrees of freedom (6-DOF). Designed specifically for product research and development testing in harsh environments, the Model 633 maintains its precision under high shock conditions. The sensor utilizes silicon MEMS Gyro sensing elements with custom electronics and packaging to produce an angular rate sensor that is highly reliable even under excessive shock and vibration environments. The piezo-resistive MEMS acceleration sensors feature a full bridge output configuration with ideal gas damping tailored for outstanding shock survivability and a flat frequency response to >6kHz. Lower ranges, refer to the 634 6-DOF Sensor.
