Product Description

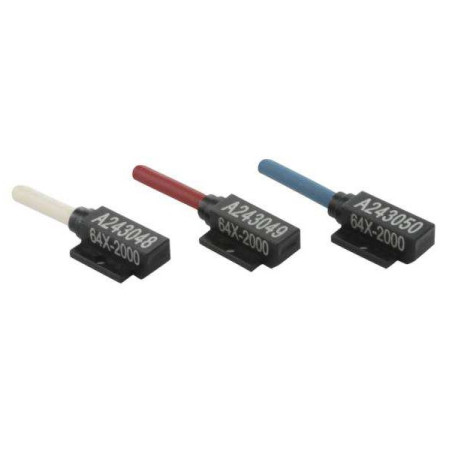

The Model 64X is the most advanced accelerometer ever released for anthropomorphic dummy instrumentation. The accelerometer features a full bridge output configuration with an advanced damping for excellent shock survivability and flat frequency response to 7kHz. The model 64X accelerometer has a standard cross-talk accuracy of <2%, a standard ZMO of <±20mV and a linearity accuracy specification of <±0.70%. The model 64X accelerometer is offered in ranges from ±200 to ±2000g and has distinct colored cables specified for each model so the g-range can visually be identified by the instrumentation engineer during testing. The accelerometer has a standard operating temperature range of -40°C to +121°C and an IP65 environmental protection rating. The Accelerometer is supplied fully calibrated to ISO17025 and can be supplied prefitted with connector, dallas ID chip and custom cable lengths. The 64X is an upgrade to the already popular 64C accelerometer having improved linearity, transverse sensitivity and enhanced damping ratio. This puts it in a class above any other competitor product like the Endevco 7264G or 7264H series.
