9600 battery powered

Slimline borehole, battery powered

  • Ranges 0-3 to 0-100 mWG
  • Output 4-20mA or SDI-12
  • Accuracy 0.05% FS
  • Built in SG compensation

Product Description

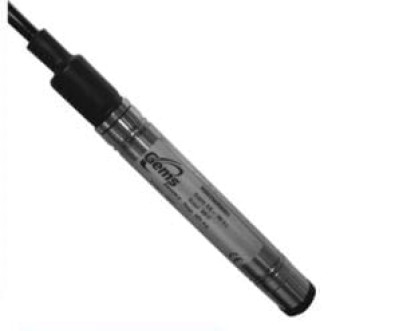

The 9600 series of pressure transducers from Gems Sensors has been designed specifically to meet the rigorous conditions for ground water monitoring while providing ultimate performance. The gam has built in specific gravity compensation, so gives a true level reading even when the media is subject to temperature changes over the ranges -5 to +45°C.

Manufactured with 318 stainless steel wetted parts, which provide excellent corrosion resistance, the 9600 can be adjusted via the cable by means of a PC or hand-held interface which reduces the installation time and removes the need to withdraw the unit from the media for calibration. The 501-12 communicating version offers minimal current draw for battery powered applications.
