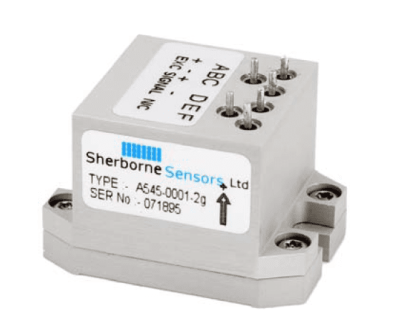

A545 Linear Accelerometer single axis

Product Description

The Sherborne Sensors’ range of Solid State Accelerometers measure vector acceleration with high accuracy and incorporate a micromachined piezo-resistive strain gauge bridge silicon sensor incorporating an gas damping feature. Unlike fluid damped devices the gas damping employed is essentially independent of temperature. The transducer also incorporates positive mechanical stops confering excellent shock resistance. The accelerometer is compensated for the effects of temperature on both sensitivity and zero. Typical applications include data acquisition systems, crash recorders, fatigue life monitoring and prediction; monitoring and controlling deceleration in mass transit systems; road bed analysis and fault detection equipment for high speed railways; military and civil flight simulators; autopilots and low frequency vibration monitoring. In addition to the instruments offered, Sherborne Sensors design and develop accelerometers for specific applications. These custom designed units can be manufactured and tested to conform to specific requirements and standards. Designed for operation from an unregulated DC power source, the A545 is packaged in a robust aluminium alloy housing with solder pin connections. The accelerometer has a wide-range useable frequency response from DC to several kHz.
