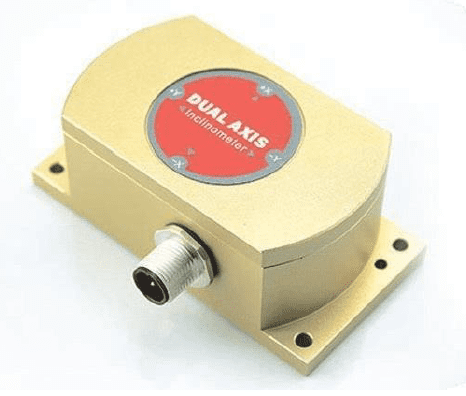

ACA826T Dual axis Inclinometer precision grade

Product Description

ACA826T is a high precision & fully temperature compensated dual-axis inclinometer with a digital output. Utilizing a high-precision 24bit A/D differential converter ensures the product signal linearity and removes the need for post linearity correction. The ACA826T system integrates a high precision temperature sensor within the MCU central processing system to provide secondary temperature compensation. Full temperature zero drift can be controlled to 0.0008% with normal operating temperatures, resolution to 0.0005 °. This product adopts a non-contact measuring principle, outputting real-time current inclination and simple to use, no need to find the two sides of an angle. With advantages of small size, strong ability of resisting external electromagnet interferences and a strong ability to withstand shock and vibration, it is the ideal choice for high specification measurements. The output interface options RS485, RS232, TTL, PWM or CAN 2.0B.
