Accustar-EA

Product Description

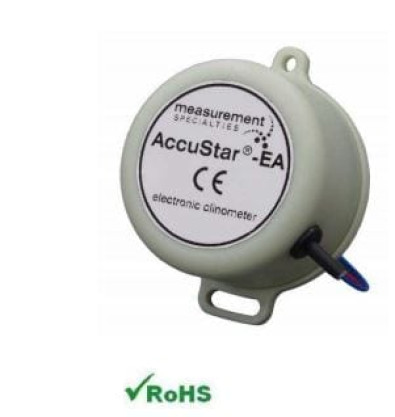

The AccuStar®-EA Electronic Clinometer is the next generation in the highly acclaimed AccuStar® family. Building on the success of the original AccuStar®, the AccuStar®-EA takes low cost tilt sensing to the next level by combining 100% solid state technology with digital calibration and proprietary filtering techniques. The result is an extremely accurate tilt sensor with improved linearity, expanded linear sensing range (±60o ), generous operating temperature range (-40° to +80°C), and a 70% reduction in temperature induced errors. Like its predecessor, the AccuStar®-EA measures just 2 inches in diameter, making this compact and affordable sensor the ideal choice where high accuracy tilt measurements are required in space restrictive applications. The AccuStar®-EA mounts easily onto any vertical surface using just two #6 or M3.5 screws. The slot at the base allows for fine adjustment of the zero angle position after installation. With a choice of either Single-Ended or Bipolar DC output models, the AccuStar® -EA is designed for easy installation and integration. Also see our other models, AccuStar® IP-66 (2-wire current loop or voltage output, IP-66 rating) and the AngleStar® Protractor System (AngleStar® Electronic Clinometer with digital readout).
