AI-Q-550/560 Servo Accelerometer

Product Description

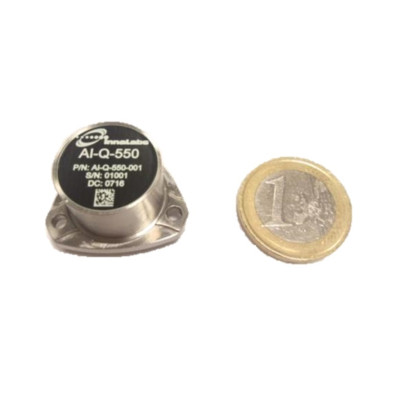

The AI-Q-550 is a dual use product +/-80g with a commercial version model AI-Q-560 available, limited to +/-15g. The InnaLabs® AI-Q-550 quartz-based servo accelerometer is an ideal, ITAR-Free choice for defence, aerospace, industrial, transport, and civil engineering applications where tactical grade performance, small dimensions, and a robust and reliable design are required. By using a customer supplied output load resistor appropriately selected for the required acceleration range, the output current is converted into a voltage proportional to the input acceleration.

The AI-Q-550 accelerometer offers an input range of ±80 g with a one-year bias composite repeatability better than 1,000 micro g in a compact and ruggedized casing that provides a high shock and vibration resistance matching the highest industry standards. The AI-Q-560 is built with InnaLabs® Quartz Flexure technology to deliver true navigational grade performance. With a low measurement range of ±15g and excellent stability and long-term repeatability. ITAR free. The AI-Q-560 features an internal temperature sensor that allows the user to carry out temperature calibration and compensation, enhancing the bias, scale factor and axis misalignment performance over temperature. State-of-the-art manufacturing processes enable InnaLabs® to offer AI-Q-560 accelerometers at competitive prices. In addition to navigation applications, the AI-Q-560 can be used to calculate speed, distance and inclination in a wide range of applications, ranging from industrial control, test and measurement, transport, oil and gas and civil engineering.
