Product Description

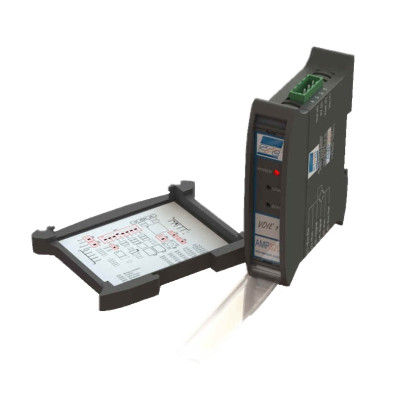

The AMP320 is a precision signal conditioner. It amplifies the low level signal (mV/V) of any strain gauge bridge transducer (pressure, force, torque, displacement) into a high level voltage (up to ±10Vdc) and/or current (4-20mA) signal. Operating from 14 to 26Vdc, it supplies the associated sensor with 5 or 10Vdc regulated power and enables low level signals between 0.5 and 10mV/V to be conditioned. With a bandwidth@-3dB from 1kHz (standard) to 10kHz (option), it is suitable for the most dynamic applications. Zero, gain and signal (voltage or current) settings are accessible to the user.Its compact DIN-rail mountable housing makes it particularly suitable for use in electrical cabinets.
