Universal analogue input module
Product Description

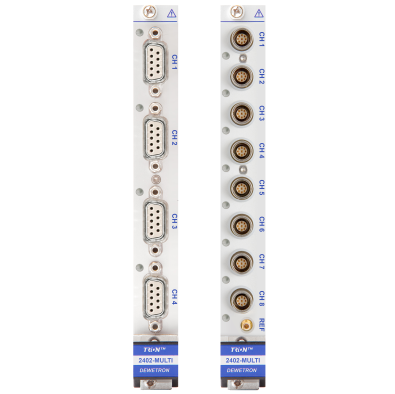

The TRION-2402-MULTI module series supports bridge, IEPE, voltage, RTD and potentiometer inputs on every channel. Input type and measurement range is freely configurable for each channel. Every channel can also be used with MSI adapters for charge and thermocouples.
One channel supports a CAN interface. The module is available with 8 channels on Lemo 0B connectors and with 4 channels on DSUB9 connectors.
The sample rate is from 100S/s to 200 kS/s per channel. Resolution is 24 bit. All channels have channel to channel and channel to ground isolation. Each channel has a freely configurable low pass anti-aliasing filter. Voltage input accuracy is ±0.02% of reading ±0.02% of range.
Freely configurable excitation voltage and current is available on all channels, as is TEDS support for automatic sensor recognition.
The TRION-2402-MULTI module series is ideal for test and measurement facilities and laboratories, and mobile applications. Sectors include aerospace, automotive, power and rail.
