Product Description

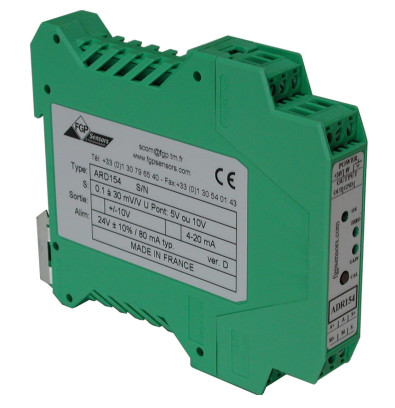

The model ARD154 is a DIN rail mountable amplifier, which adapts to most strain gage-based load cells, pressure transducers and accelerometers. The bridge supply voltage can be set to 5V or 10V ±10V analogue output signals or 0/4-20mA current outputs. The covers sensitivity range from 0.1mV/V to 30mV/V. It also allows connecting four 350 Ω sensors in line with 5V excitation. Through its modular design, the ARD154 adapts to many different applications. Basic settings, including bridge supply voltage, bandwidth, signal output and fixed zero offset are easily performed with onboard jumpers. Zero and Gain adjusting is facilitated by trimmers on the front panel.
