4-20mA or 0.5-4.5 VDC output options
Product Description

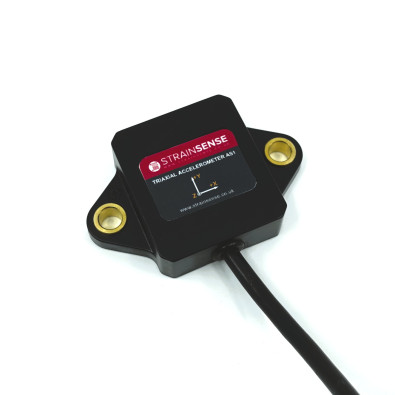

The AS1 Series Accelerometer is a versatile analogue DC accelerometer with 4-20mA or 0.5 to 4.5V output. Using a low-noise Monocrystalline silicon capacitive micromachined sensing element, the signal is internally compensated for linearity and long-term stability. Low power consumption and EMC/RFI shielded makes this a versatile and affordable accelerometer for many varied applications. Available in ranges from ±2g to ±16g and analogue output, this DC coupled accelerometer has a frequency range from 0Hz to 200Hz. The AS1 has a rugged plastic body with M6 brass screw fixings and incorporates a shielded PUR cable, IP67 protected for maximum durability. The accelerometer includes a self-test function for verification of sensor integrity. Suitable for structural monitoring, motion measurements, low frequency vibration monitoring.
4030-002-120, 4030-006-120, 824-4030-002-120, 824-4030-006-120, 3397523
AS1 now in stock available to purchase on Strainsense Store.
Product Features
Technical Resources
Click the resource buttons below to download the file.
Product Applications
Stock Quantity
| SKU | Product Title | Stock Qty | Lead Time | Unit Price |
|---|
