Product Description

The accelerometer types ASC ECO-1311 2311 3311 are based on proven MEMS technology and capacitive operating principle. The integrated electronic circuitry enables a differential analog voltage output (±2.4 V FSO) and flexible power supply voltage from 5 to 40 VDC. The accelerometers provide a very low current consumption below 250 μA while featuring wide frequency response range from 0 Hz to 2.4 kHz (±3 dB) and an extremely robust design with shock resistance up to 10,000 g.

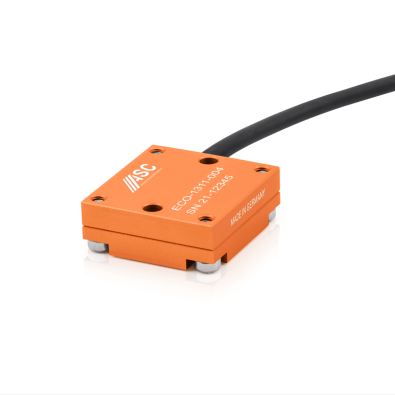

The Accelerometer features a lightweight, reliable aluminum housing with protection class IP68 and an integrated cable with configurable length and connectors.

The accelerometers feature a flat design that allows quick and easy mounting. This makes them ideal for measuring applications in hard-to-access installations, e.g. condition monitoring systems. Due to the very low current consumption the sensors of the ASC ECO series are used in battery powered system, such as AGVs (automated guided vehicles), ROVs (remotely operated vehicles) or as a part of a self-sustaining sensor system.

Available in Single axis, Biaxial or Triaxial variants. The Biaxial axis are configurable via the data sheet.
