MARINE GRADE IP68 200/300 SERIES

Product Description

The accelerometer family ASC OS-215LN OS-315LN &  OS-225MF & OS-325MF are based on proven MEMS technology and capacitive operating principle. The integrated electronic circuitry enables a differential analog voltage output (±4 V FSO) and flexible power supply voltage from 6 to 40 VDC. The LN (Low Noise) accelerometers from ASC provide an outstanding noise performance from 7 to 400 μg/√Hz which is essential for demanding measurements of smallest frequencies and amplitudes.

There are 4 versions depending on the application need

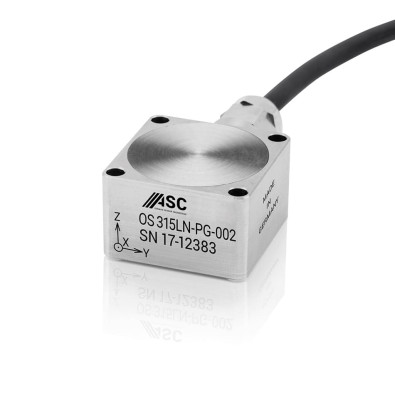

Biaxial OS-215LN or Triaxial OS-315LN has low noise 7 to 400 μg/√Hz and integrated cable for submersible applications.

Biaxial OS-225MF or Triaxial OS-325MF has noise floor 10 to 680 µg/√Hz and integrated cable IP68 is used where there is temperature variation within the application.

Applications are not limited to offshore structural health monitoring, they are actively used in railway engineering and general condition monitoring.
