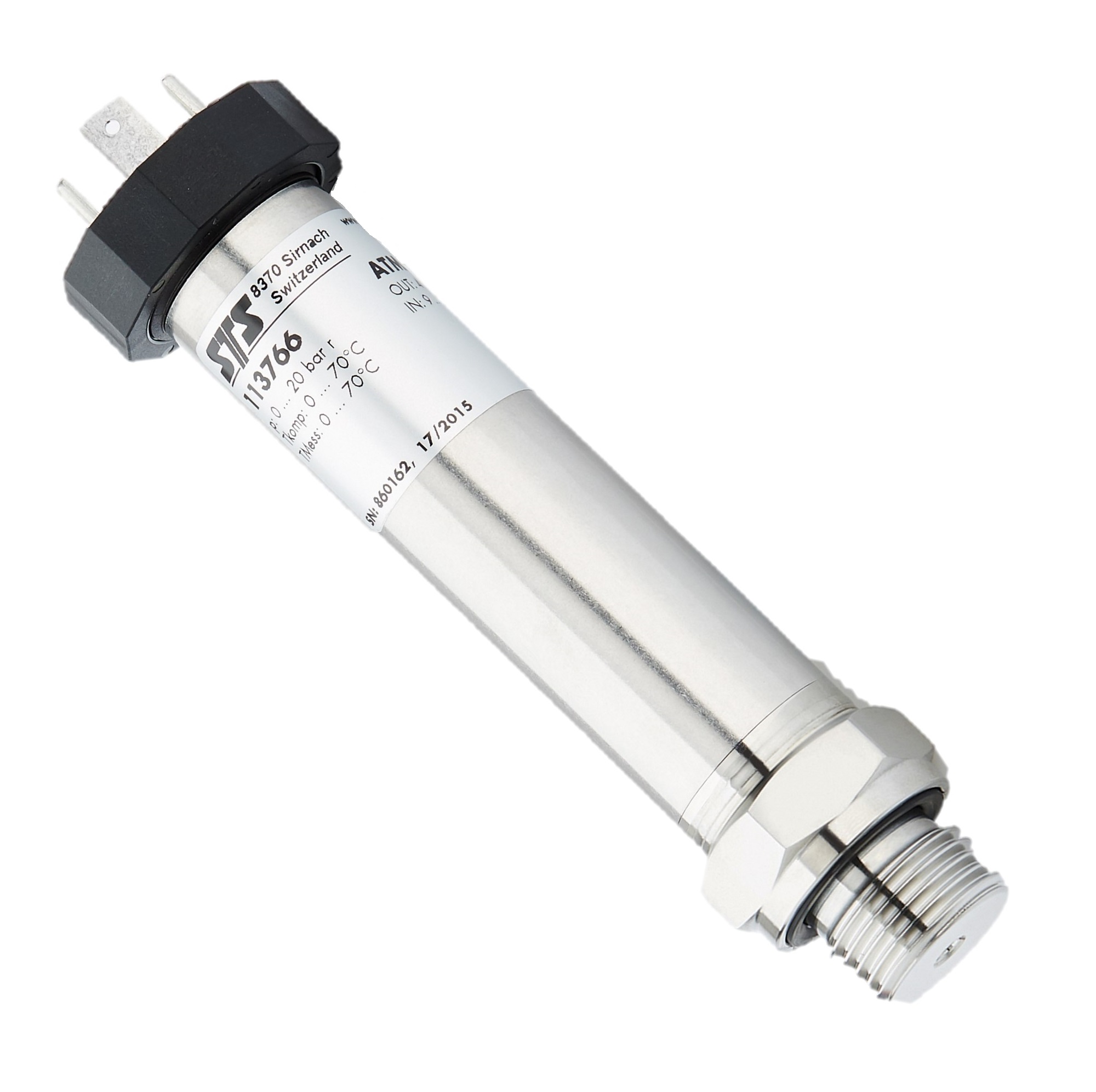

Pressure transmitter, combined P&T
The model ATM.1ST/T is a high accuracy combined pressure and temperature transmitter 4-20 mA, 3 or 4 wire current outputs. Pressure ranges start from 0-100 mbar to 0-25 bar gauge, absolute or sealed gauge. Process connections are G 1/2″ or NPT male with integral temperature probe. Electrical connections include DIN 43650, M16 binder, cable however look at the DIN 43650 de-mountable which allows zero/span adjustment on site. Due to the unique modular design, many options are available including high temperature to 150 Deg C, Titanium body material, IP67.
Our experts can help you select the right product for your application.
