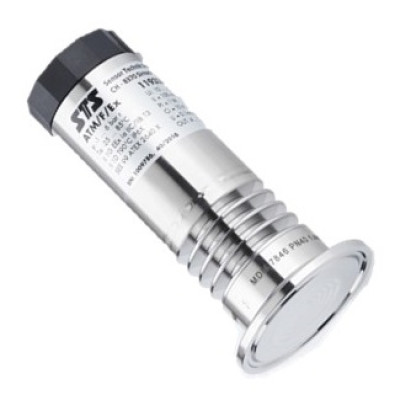

ATM/F/Ex hygenic pressure transmitter

Product Description

The model ATM/F/Ex is specifically designed for use in diary applications where CIP, sterilisation, surface finish and process connections are required for hazardous area locations. Approval to ATEX 1G Ex ia IIC T3-T6. Process connection options include Milk flange DIN-11851, 1" or 1 1/2" Clamp, or DIN flanges. Surface finish is equal or better than 0.8 Ra. Options are available for special food grade oil fills such as Anderol or AS100 for higher temperatures. Using the demountable DIN-43650 connector will allow the adjustment of the zero/span. Pressure ranges are 0-100 mbar to 0-25 bar gauge, absolute or sealed gauge. Output options include current or voltage. Standard temperature is -25 to 100 Deg C however, an option is available to 150 Deg C using temperature cooling fins. A safe area version is available, see ATM/F but also Factory mutual on request.
