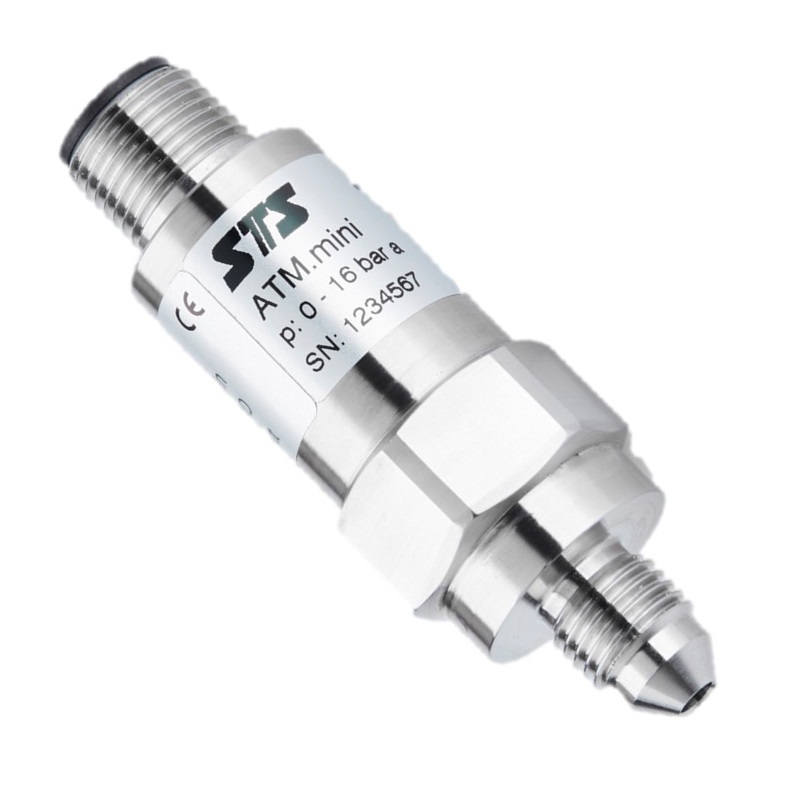

Pressure transmitter, compact size
The model ATM.mini is a small pressure transducer where space is at a premium. The all welded sensor ranges options are 0-1 to 0-100 bar gauge or absolute, with thread options M8/M10 x 1mm, 1/8" NPT or 3/8-24 UNF fittings. Output either 4-20mA or 0.5-4.5 VDC and several electrical connector such as M10 x 1mm, mini DIN, MIL C 26482 or cable options. Size varies depending on options, but starts at 31.5mm overall length from sensor face to rear.
Our experts can help you select the right product for your application.
