ATM/NC/Ex PVDF

Product Description

Obsolete effective September 2022. Please contact us for replacements.

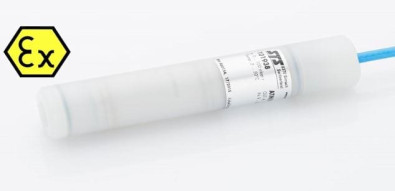

The model ATM/NC/Ex is a level or depth transmitter with the body manufactured in PVDF designed for resistance to aggressive chemicals, used for Hazardous area to ATEX or IECEx requirements. Ranges start from 100 mbar to 25 bar gauge or absolute pressure reference. The sensing element is available in titanium or a FEP covered 316L diaphragm. Output options either current 4-20mA, 0-20mA or voltage 0-5 VDC, 0-10 VDC with surge protection or custom designs. Seals include Viton, EPDM or Kalrez. Contact us for more assistance to ensure the right solution is provided.
