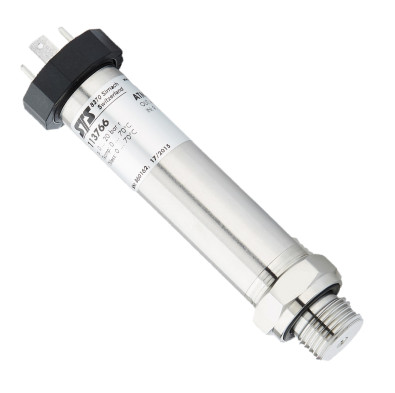

ATM/T combined P&T

Product Description

The model ATM/T is a combined pressure and temperature transmitter with two independent current or voltage outputs. Designed for food & beverage use however can be used for general applications. Pressure ranges start from 0-50 mbar to 0-600 bar gauge, absolute or sealed gauge. Process connections are G 1/2" male with either a frontal or flush diaphragm. Electrical connections include DIN 43650, M16 binder, cable however look at the DIN 43650 de-mountable which allows zero/span adjustment on site. Due to the unique modular design, many options are available including high temperature to 150 Deg C, Titanium body material, IP67.
