CAN Interface Module TRION-CAN

High speed CAN interface module

4 isolated channels
High speed CAN 2.0B interface
Use DBC / ARXML files to decode
Receive and transmit modes

Categories: CAN Modules CAN Modules Data Acquisition DAQ Systems Input Modules Power Analyzers Additional Input Modules

Product Description

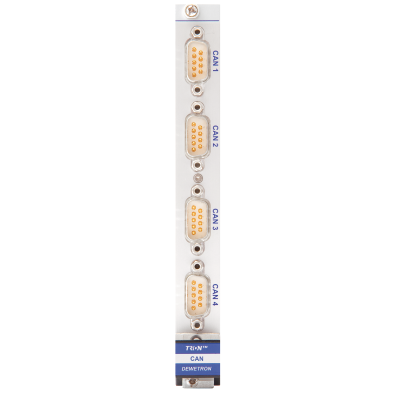

The TRION-CAN-4-D module supports 4 high speed CAN interfaces. The interface is specified to CAN 2.0B standard. The maximum baud rate is 1 Mbit/s per channel. Each interface is isolated. Termination is programmable for each interface. The connector type is DSUB9.

A DBC or ARXML file can be used in the Oxygen software to decode CAN data in real time. This includes processing individual messages and channels.

The CAN interface module can also be used to transmit raw and calculated data channels from the Oxygen software to external devices. This provides capability for test bed integration. An option for Oxygen is required for this feature.

The TRION3-CAN-4-D module is ideal for test and measurement facilities and laboratories, mobile applications. Sectors include aerospace, automotive, power and rail.
