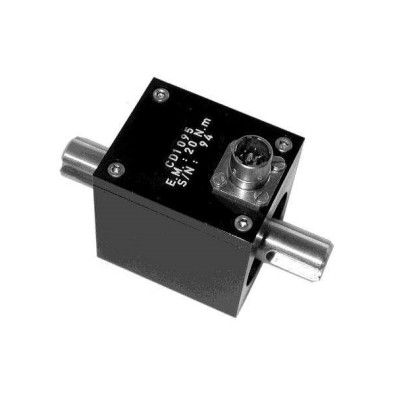

CD1095 key shaft

Product Description

Obsolete, contact us for alternatives.

The model CD1095 has been designed to measure in-line torque on rotating shafts. Its sensing element is based on thin layer strain gauges in a Wheatstone bridge configuration providing excellent temperature stability. Optionally the torque sensor can receive an on-board amplifier for high-level output. Another version with male square couplings exists under the reference CD1050.

Ranges +/-5 to 2500 Nm, keyed shaft coupling in stainless steel. High stiffness for fatigue applications.

With a long standing experience as a designer and manufacturer of sensors, TE Connectivity often works with customers to design or customize sensors for specific uses and testing environments. On request, Instruction documents can be provided to ease the selection and use of our sensors and provide helpful tips.
