Potentiometric output draw-wire sensor
Product Description

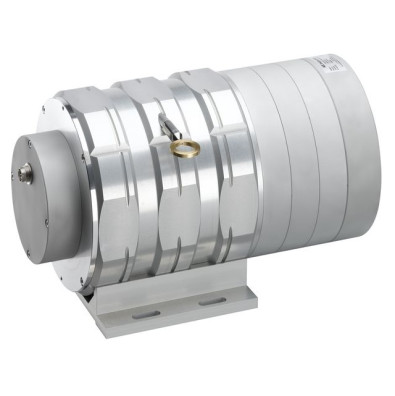

The CDS1830 String Potentiometer is a linear displacement sensor designed to measure the movement or displacement of an object accurately. It has an exceptionally wide measuring range of up to 30000mm, providing a potentiometric output with a 3-wire, shielded cable for easy integration.
This potentiometer offers high accuracy and precision with a linearity of ±0.1% F.S. and infinite resolution, providing accurate measurement of small movements. It also has a repeatability of ±0.01mm, ensuring consistent and reliable results, and a maximum speed of up to 5 m/s for high-speed applications.
The CDS1830 String Potentiometer has a wide operating temperature range of -20°C to +80°C and requires a supply voltage of 5 VDC. Its electrical connection is through a 3-wire, shielded cable with a connector, and it has an IP65 protection class.
This linear displacement sensor is suitable for various applications, including industrial automation, material handling, robotics, medical devices, automotive testing, and aerospace and aviation. Its compact and durable design, along with its high precision and accuracy, make it an ideal choice for measuring the displacement of objects in different industries.
Product Features
Technical Resources
Click the resource buttons below to download the file.
Product Applications
Stock Quantity
| SKU | Product Title | Stock Qty | Lead Time | Unit Price |
|---|
