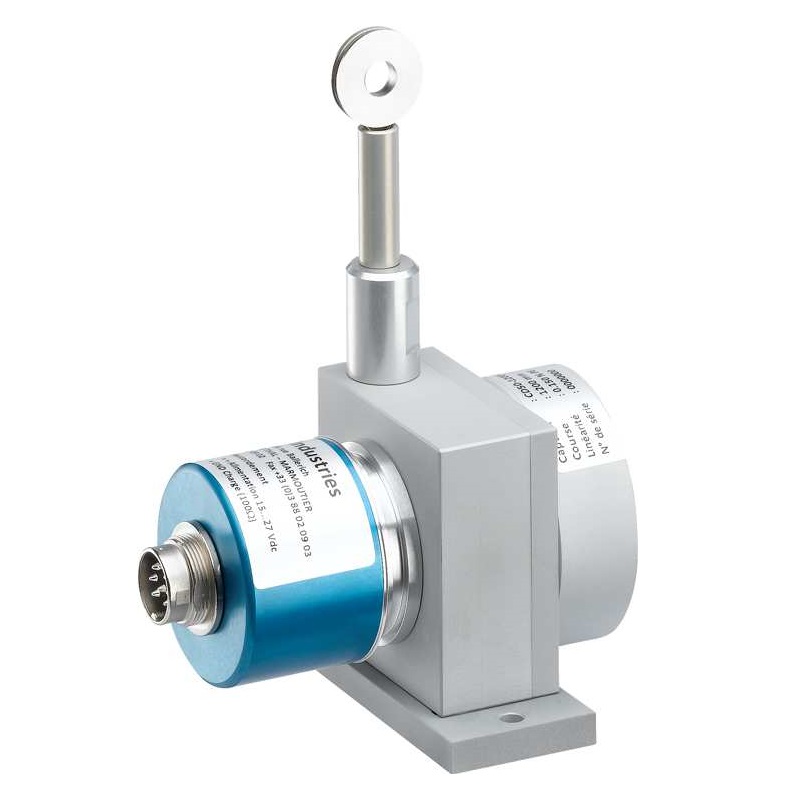

CD50 string potentiometer

Product Description

Introducing the CD50 String Potentiometer, a reliable and versatile displacement sensor that provides accurate measurements up to 1250mm. With its incremental output, the CD50 offers precise and consistent results in a variety of applications.

The CD50 offers an excellent linearity option of 0.1%, ensuring precise and consistent measurements. Its IP54 protection class rating makes it suitable for use in harsh environments where dust and water may be present, ensuring reliable performance over time.

The CD50 features a durable construction, with a stainless steel cable and a rugged aluminum housing, ensuring long-lasting performance in harsh environments. Its compact design makes it easy to install, and its flexible cable allows for simple mounting on moving objects.

This sensor operates on a DC voltage range of 5V-24V, and its output signal is a square wave with a frequency proportional to the displacement of the cable. The CD50 is also equipped with reverse polarity protection, ensuring safe operation in case of incorrect wiring.

The CD50 String Potentiometer is ideal for use in applications such as automotive testing, industrial automation, and robotics. Its high accuracy, reliability, and durability make it an excellent choice for any application that requires precise displacement measurements.

Technical note: Recommended maximum draw wire extension length – 5 metres maximum
