Product Description

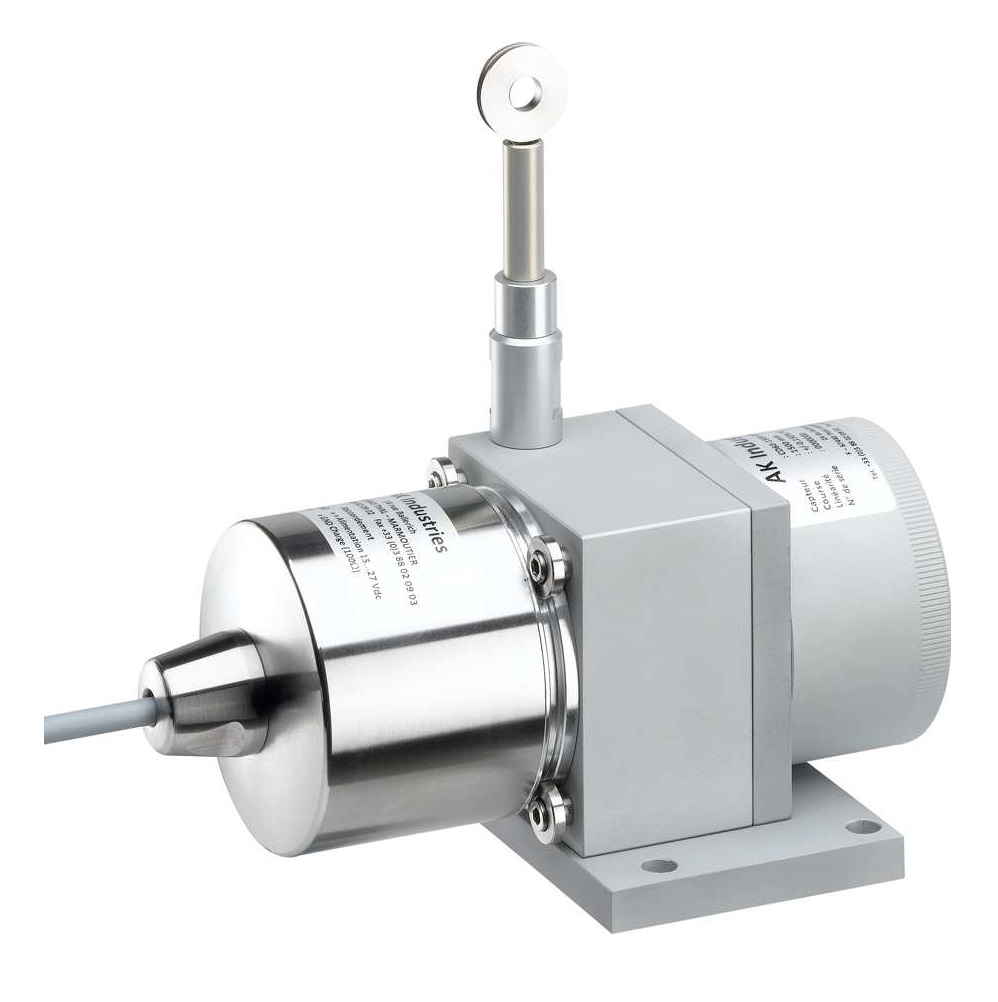

The CD60 String Potentiometer is a versatile and reliable measuring device that is capable of accurately measuring linear displacement in a wide range of applications. With a measurement range of 0-1500mm, this potentiometer is suitable for use in a variety of settings, from industrial machinery to laboratory equipment.

One of the key features of the CD60 String Potentiometer is its absolute output, which ensures that the measurement values are retained even after power loss or device shutdown. This makes the CD60 a great option for applications where accurate measurement and data retention is critical.

The potentiometer also boasts a high resolution of 13 bits = 8192steps/turns, allowing for precise measurements and fine control. Additionally, it has a linearity option of 0.01% of the measurement range, ensuring accurate and reliable readings.

The CD60 String Potentiometer is constructed using high-quality materials, including an anodized aluminum housing and a stainless-steel wire, which make it durable and long-lasting. It is also resistant to shock, vibration, and environmental factors, making it suitable for use in harsh industrial environments.

The potentiometer is easy to install and operate, with a simple mounting bracket and a user-friendly interface. It can be configured with a range of output options, including analog voltage, current, or digital outputs, making it versatile and adaptable to different applications.

Overall, the CD60 String Potentiometer is a highly reliable, accurate, and versatile measuring device that is suitable for use in a wide range of applications.

Technical note: Recommended maximum draw wire extension length – 10 metres maximum

CD60 now in stock available to purchase on Strainsense Store.
