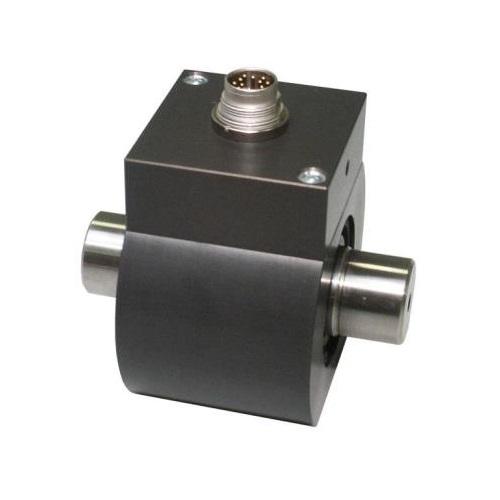

CD9515 low cost

Product Description

Obsolete, contact us for alternatives.

The torque transducers model CD9515 are suitable for applications in laboratory as well as in industrial environment because of their compact outline and their multiple mounting options. The contactless transmission of supply voltage and measuring signal enables continuous operation with low wear out and no service. For varying applications these transducers are available also with optional speed detection.

The integrated measurement amplifier is supplied with 11,5 to 30 Vdc and outputs an analog signal of 0 to ±5V and also a current output of 10 mA ±8 mA. Due to the broad range of supply voltage the transducer can be operated directly to a PLC. This transducer should be used only with the especially designed couplings.
