Counter, DIO and synchronization module

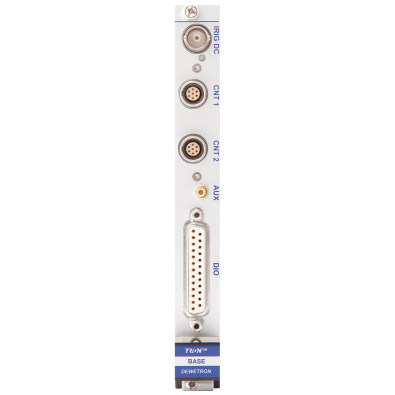

The TRION-BASE module supports 2 advanced counter / encoder inputs, 8 digital inputs and 8 configurable digital IO, all TTL level. The counter inputs are on Lemo 1B connectors, whilst digital IO are connected on a DSUB25 connector.
Sample rate is from 100 S/s to 2MS/s per channel for counters and digital IO.
Regulated 5V and 12V DC power supplies are available on the module to power sensors.
The module has an auxiliary output. This is used as a camera trigger by default and can be used for any trigger input / output.
The module has an IRIG code B DC interface for time synchronisation as an input source or output signal on a BNC connector.
The TRION-BASE module is ideal for test and measurement facilities and laboratories, mobile applications. Sectors include aerospace, automotive, power and rail.
Our experts can help you select the right product for your application.
