Current transducer CWT
Product Description

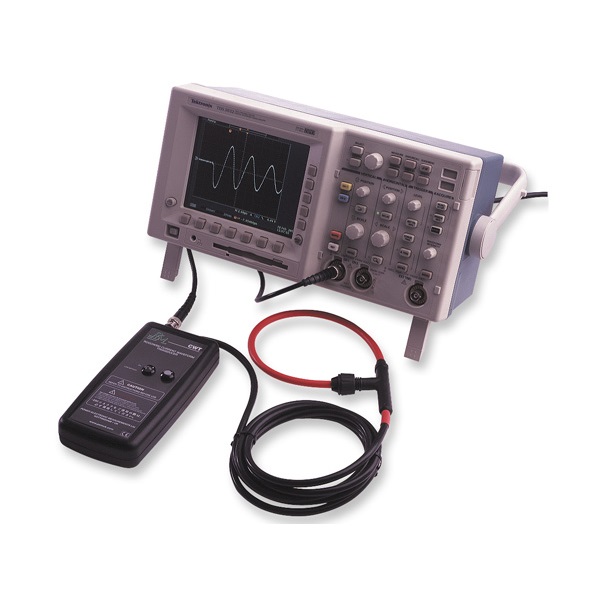

The CWT is a state of the art wide-bandwidth ac current probe. The CWT is ideal for power electronics development work because it combines an easy to use thin, flexible, clip-around coil with an ability to accurately replicate fast switching current waveforms be they sinusoidal, quasi-sinusoidal or pulsed.
With measurement range from 300mA to 300kA, standard coil lengths of 300, 500, 700 and 1000mm and standard cable lengths of 2.5m and 4m, the CWT is flexible for a wide range of applications. Standard output at peak current for each sensor range is 6V. HF bandwidth with the 300mm coil is up to 16 MHz.
Product Features
Technical Resources
Click the resource buttons below to download the file.
Product Applications
Stock Quantity
| SKU | Product Title | Stock Qty | Lead Time | Unit Price |
|---|
