Portable DAQ system with touchscreen

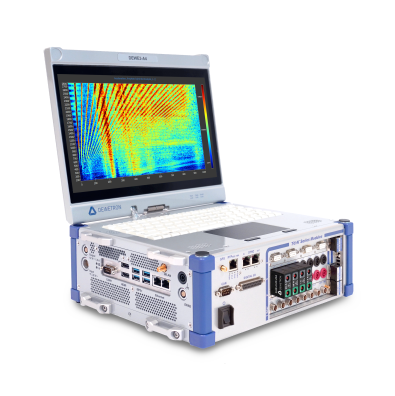

The DEWE3-A4 is a rugged and compact data acquisition system for portable or mobile use. The A4 has a 13.3" full HD display, 4 slots for user exchangeable TRION / TRION3 data acquisition modules (for up to 32 high speed analogue inputs) and LAN, USB3, HDMI and WiFi interfaces for full connectivity.
It has a digital I/O connector for digital I/Os and counter inputs and EPAD interface for low speed module connection. Data storage is a removable 1TB SSD with up to 400MB/s gap free data rate. There are options for CAN, GPS and IRIG/PTP interfaces on the chassis. The chassis has a vibration and shock rating.
Includes powerful Oxygen data acquisition and analysis software for set up, recording, display and post processing. Standard features include maths, statistics, filters, FFT and PDF export.
Power supply is DC. Includes an external AC adapter. Optional buffer battery and UPS battery pack with chargers.
Applications include automotive, rail, aerospace, power testing.
