Product Description

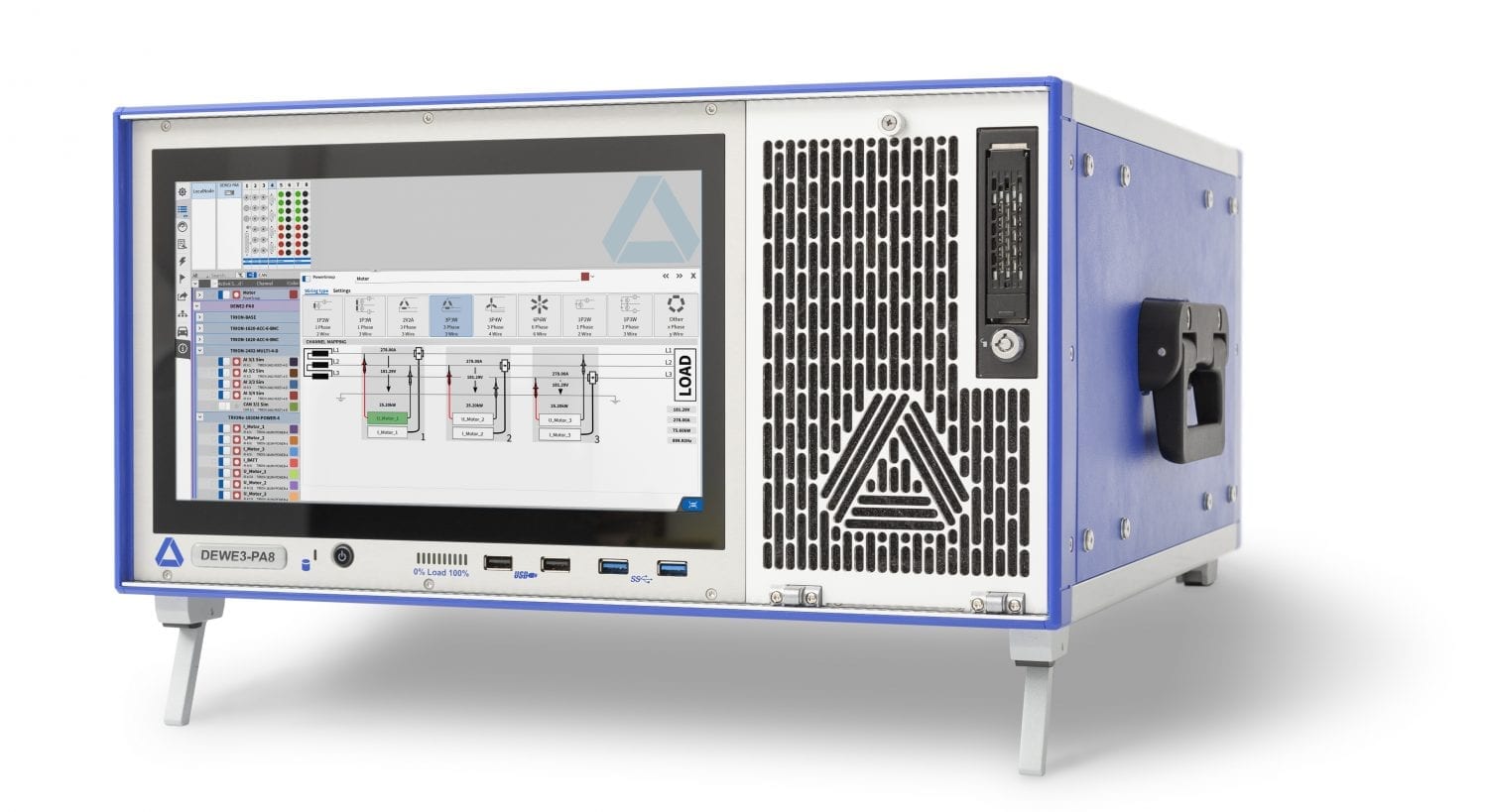

The DEWE3-PA8 is the next generation Power Analyzer with Mixed-Signal Capability for High Speed Data Acquisition and precision power analysis. The DEWE3-PA8 is the solution for analysis of several motors, converters or complete drive trains simultaneously. Up to 16 power channels and the capability for calculation of power parameters even for polyphase motors (up to 9 phases) turns the DEWE3-PA8 into a multi phase power analyzer.

The new 8-Slot PXIe Backplane, which supports the brand-new TRION3-Series allows sampling rates up to 10MS/s per channel. Combined with high speed SSD technology a data throughput of up to 1GB/s is possible. With this feature, you get every single sample into your data file, not just a few seconds.

Smart interface technology makes it easy to integrate a DEWE3-PA8 into automation systems and test bed environments while it guarantees reliable data transmission, easy to use remote control through TCP/IP based protocols in compliance with standardized protocols. Interfaces available include SCPI, EtherCAT and CAN.

The DEWE3-PA8 is fully industry compliant to IEC 61000-4-7, IEC 61000-4-15 & IEC 61400-21 for harmonics, interharmonics and higher frequencies as well as voltage fluctuations and flicker emissions.

An integrated 11.6" full HD touchscreen display makes the PA8 ideal for laboratory and benchtop applications. Chassis interfaces include LAN, USB3 and HDMI for additional connectivity. Power supply is 100 to 240V AC.

Contact us today for an online or in person demonstration.
