Product Description

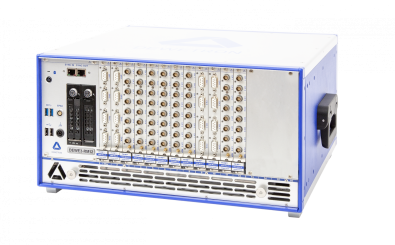

The DEWE3-RM4, RM8, RM12 & RM16 are the latest high speed rackmount data acquisition mainframes for high channel counts. They are compatible with both TRION3 and TRION data acquisition modules. A channel count of 128 high speed analogue channels per system is possible. Additional acquisition units can be networked together with the unique OXYGEN-NET in sync for higher channel counts.

The mainframe has gapless storage of raw data up to 1 GB/s continuous and an internal data storage drive of up to 2TB (removable for easy access). There is a separate 256GB drive for the operating system and application software.

All systems include 19 inch rack mounting kit and can also be used bench-top based. Interfaces include LAN, USB3, Display Port, HDMI and EPAD for maximum connectivity. Sync options include the internal TRION sync bus and options for external GPS, PTP or IRIG sync.

The system can be configured as a data acquisition front end with data streamed digitally to a separate acquisition PC.

The system is supplied with the intuitive Oxygen acquisition software for system configuration and analysis of recorded data. Remote control is available using the SCPI over Ethernet interface.

The main applications are for test rigs and laboratory use, ideal for storing high channel counts at high sample rates. Industries include aerospace, automotive, rail, power generation.

There is an option for connecting the DEWE3-RMxx system to a host PC. The connection with the host PC (not included) is established by means of a LAN connection via the RJ-45 interface on the back of the DEWE3-RMxx system.
