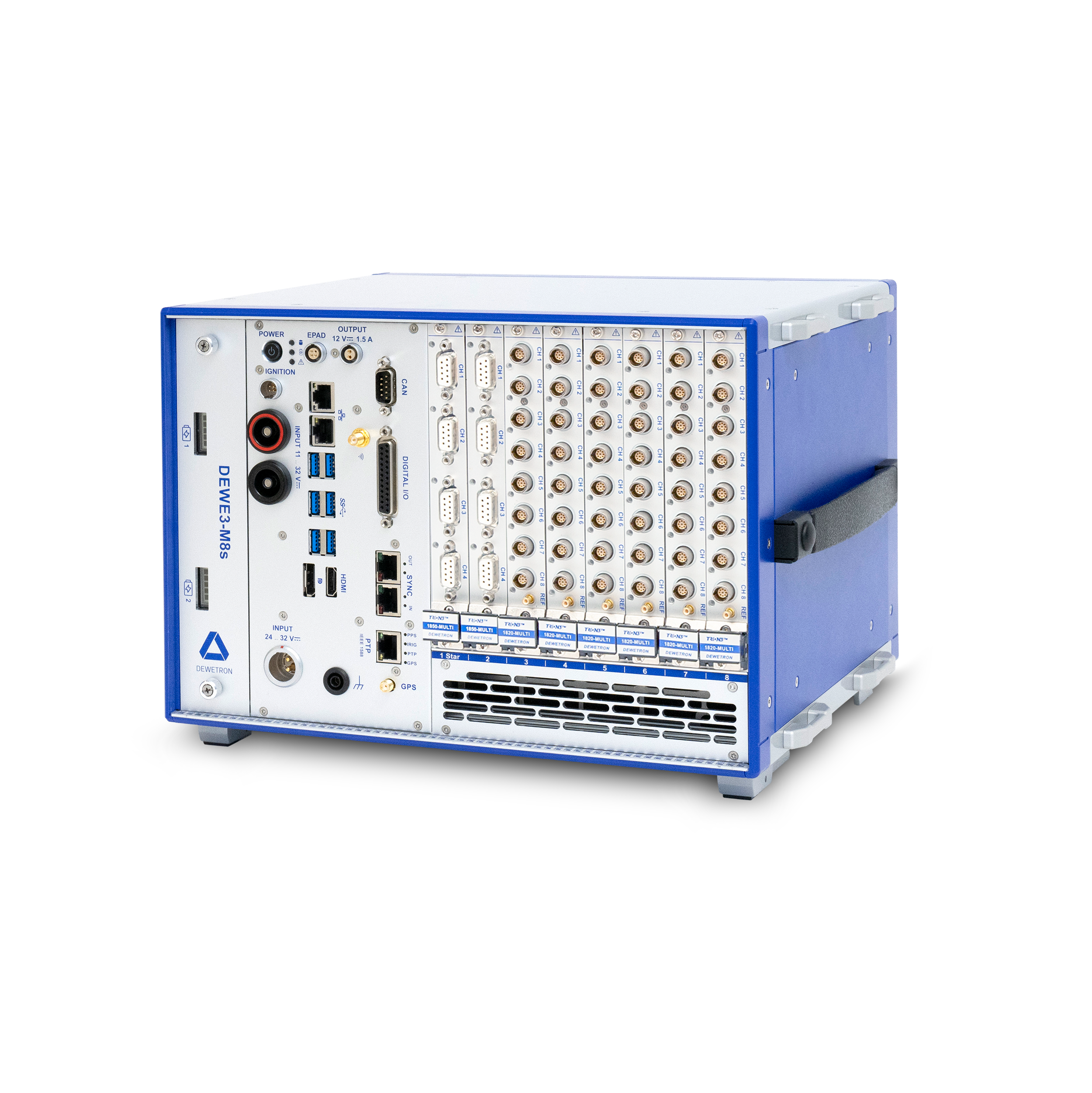

Portable DAQ system with battery bays
The portable DEWE3-M8s is DC and battery powered and therefore perfect for automotive applications like in-vehicle power and efficiency measurements, durability or vehicle dynamics tests, WLTP or e-charger measurements, and many more.
The M8s has 8 slots for user exchangeable TRION / TRION3 data acquisition modules (for up to 64 high speed analogue inputs), 2 integrated battery bays and LAN, USB3, HDMI and WiFi interfaces for full connectivity.
It has a digital I/O connector and EPAD interface for low speed module connection. Data storage is a removable 1TB SSD with up to 800MB/s gap free data rate. There are options for CAN, GPS and IRIG/PTP interfaces on the chassis.
The DEWE3-M8s offers various power supply options to match all needs of automotive test engineers. Due to the hot-swap technology, the batteries can be exchanged during ongoing measurement and enable mobile continuous operation without an external power source. A dedicated OXYGEN plugin allows the user to monitor the battery status during the measurement campaign.
Includes powerful Oxygen data acquisition and analysis software for set up, recording, display and post processing. Standard features include maths, statistics, filters, FFT and PDF export.
Our experts can help you select the right product for your application.
