Product Description

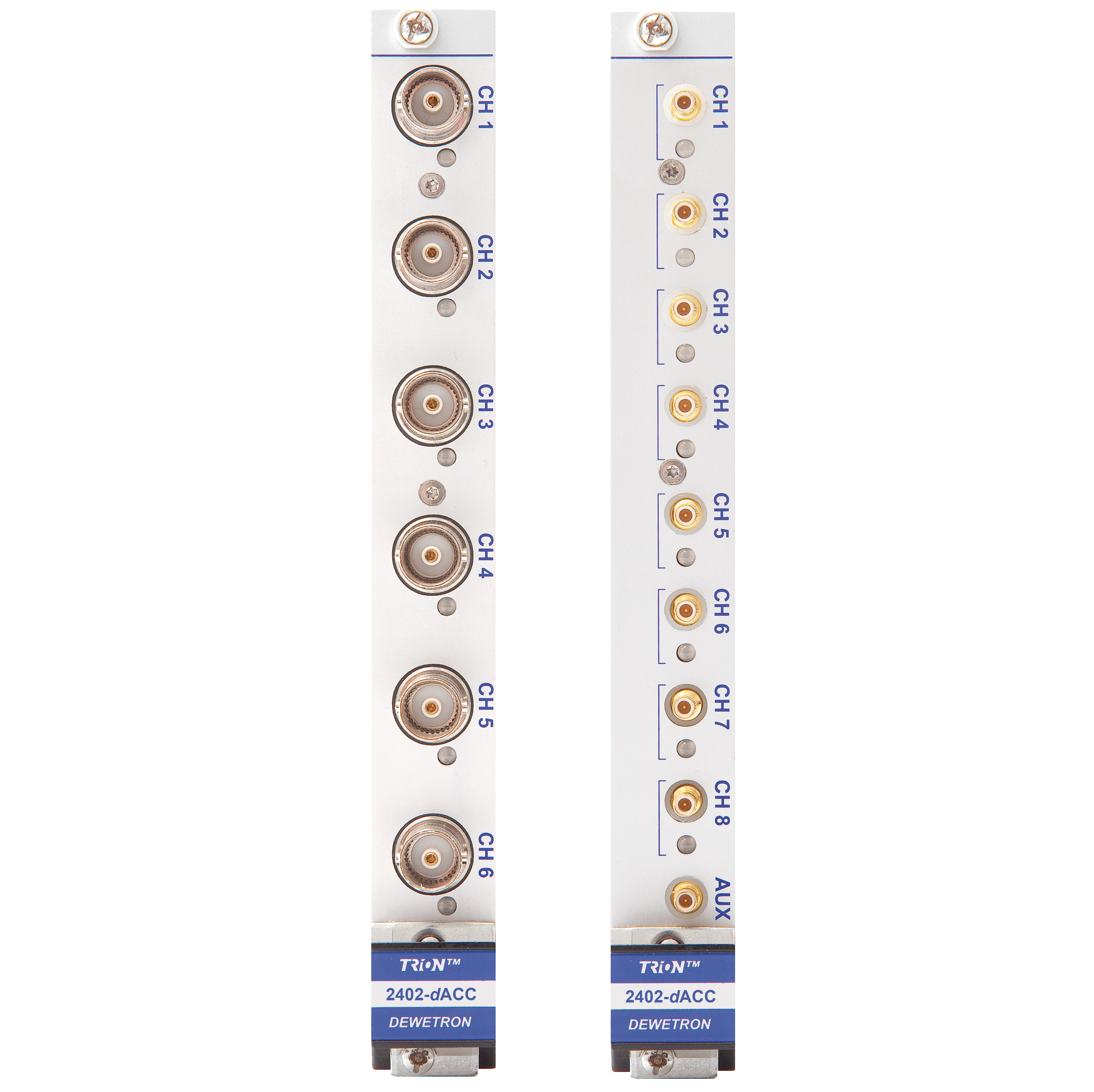

The TRION-2402-dACC module supports voltage, IEPE and resistance inputs on every channel. Current inputs are also supported with an external shunt. Input type and measurement range is freely configurable for each channel. Two channels can also be used as counter inputs.

The module is available with 8 channels on Lemo 0B connectors and RJ45 connectors.

The sample rate is from 100S/s to 200 kS/s per channel. Resolution is 24 bit. Input configuration is differential or single ended. Each channel has a low pass anti-aliasing filter. Voltage input accuracy is ±0.02% of reading ±0.02% of range.

Configurable IEPE excitation is available on all channels.

The TRION-1620-ACC module series is ideal for use with IEPE sensors principally accelerometers and vibration testing. Sectors include aerospace, automotive, power and rail.
