Digital input module

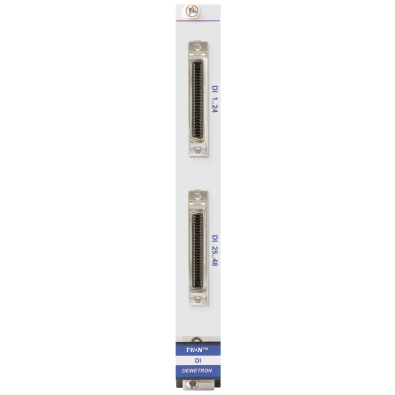

The TRION-DI-48 module supports digital inputs. The signal level compatibility is CMOS. The module has 48 inputs across 2 x 50 pin min Centronics connectors.
Sample rate is from 100S/s to 3MS/s per channel. Each channel has channel to channel and input to chassis isolation.
A regulated 5V power supply is available on each connector to power sensors.
The TRION-CB24-B breakout box with pairs of 4mm banana plugs for each channel and a 1m cable is available. Two boxes are required for all 48 channels.
The TRION-CB24-SC screw terminal block with 1m cable is also available. Two blocks are required for all 48 channels.
The TRION-DI-48 module is ideal for test and measurement facilities and laboratories, mobile applications. Sectors include aerospace, automotive, power and rail.
Our experts can help you select the right product for your application.
