Product Description

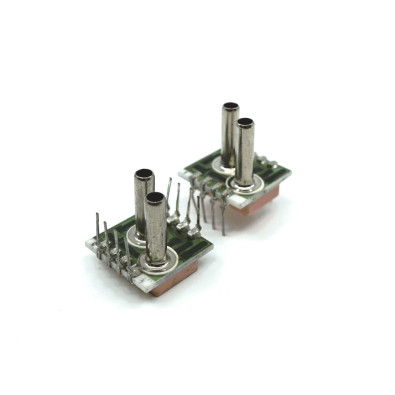

The Ceramic Hybrid Technology Pressure Sensor Series is a temperature compensated, mV output, PCB mounted pressure sensor packaged in a rugged Dual In Line package. The Ceramic Hybrid Technology uses a silicon MEMS pressure sensor bound to a ceramic substrate containing thick film resistors that are uniquely laser trimmed for each sensor. Incorporating a flexible design, the SA12 Series is available with no, short or long tubes and can be mounted pins up or pins down to allow OEMs to optimize their board design.

These are FFF (Fit, form and function) direct replacements to the MEAS/TE Connectivity, SMI Silicon Microstructures or Novasensor Pressure Sensors. The 1210 & 1220 are lower accuracy 0.2% versions with Constant Current or Constant Voltage supply. The 1230 & 1240 are the higher accuracy 0.1% linearity versions.

SA1210 is a direct replacement to the TE Connectivity model 1210A or Novasensor NPC-1210.

SA1220 is a direct replacement to the TE Connectivity model 1220A or Novasensor NPC-1220.

SA1230 is a direct replacement to the TE Connectivity model 1230A or Novasensor NPC-1230.

SA1240 is a direct replacement to the TE Connectiviy model 1240A or Novasensor NPC-1240.

SA5652 and SA5852 are direct replacements to the SMI models SM5652 & SM5852 which was acquired by TE Connectivity.

SA5652 is a drop in replacement to the TE Connectivity/SMI model 5652.

SA5852 is a drop in replacement to the TE Connectivity/SMI model 5852 (Digital output).

The SA1210VC is an expansion of the series to include Analogue 0-10 VDC and Current 4-20mA output.

Replacements for models:

1210A-001D-1L, 1210A-001D-1N, 1210A-001D-1S, 1210A-001D-3L, 1210A-001D-3N, 1210A-001D-3S, 1210A-001G-3S, 1210A-002D-3N, 1210A-002D-3S, 1210A-002G-3L, 1210A-005D-3S, 1210A-005G-3S, 1210A-015A-3L, 1210A-015A-3N, 1210A-015A-3S, 1210A-015D-3L, 1210A-015D-3S, 1210A-015G-1L, 1210A-015G-3L, 1210A-015G-3S, 1210A-030A-3N, 1210A-030D-3L, 1210A-030D-3S, 1210A-030G-1L, 1210A-030G-3L, 1210A-050D-3L, 1210A-100D-3L, 1210A-100D-3S, 1210A-100G-3L, 1210A-100G-3N, 1210A-10WD-3S, 1220A-001D-3S, 1220A-001G-1L, 1220A-001G-3N, 1220A-002D-3L, 1220A-002D-3N, 1220A-002D-3S, 1220A-005A-3L, 1220A-005D-3L, 1220A-005D-3S, 1220A-005G-3N, 1220A-005G-3S, 1220A-015A-3N, 1220A-015A-3S, 1220A-015D-3L, 1220A-030A-3N, 1220A-100G-3N, 1230-002D-3L, 1230-005D-3L, 1230-015A-3L, 1230-015A-3S, 1230-015D-3L, 1230-015D-3S, 1230-015G-1L, 1230-015G-3S, 1230-030A-3L, 1230-030A-3N, 1230-030D-3L, 1230-030G-3N, 1230-030G-3S, 1230-100G-3N, 1230-100G-3S, 1240-005D-3S, 1240-015A-3S, 1240-015D-3S, 1240-015G-3L, 1240-030A-1N, 1240-030D-1L, 1240-030D-3S, 1240-030G-3L, 1240-050D-3L, 1240-050D-3S, 1240-100D-3L, 1240-100D-3S

SA1210 & SA1220 now in stock available to purchase on Strainsense Store.
